Canyon Neuron CF LTD 2021

MTB Trail
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
13,26 kg
Front travel
140mm
Rear travel
130mm

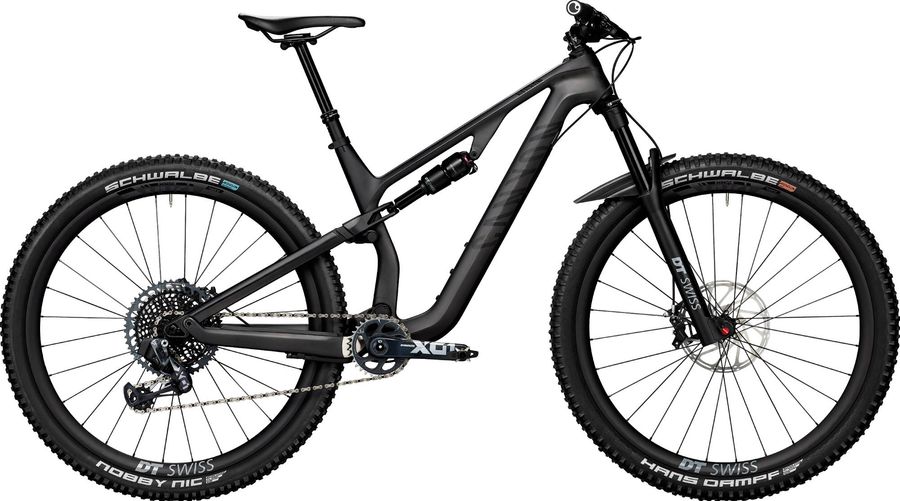

Canyon Neuron CF LTD 2021

About the Canyon Neuron CF LTD 2021

The Canyon Neuron CF LTD 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,26 kg.

Features

The Canyon Neuron CF LTD 2021 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Turbine 35
Saddle
Ergon SM10 Sport
Seatpost
Race Face Turbine R
Handlebar
Race Face Next 35
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
SRAM X01 Eagle DUB 32
Shifter
SRAM XX1 Eagle AXS 12s
Bottom bracket
SRAM BSA DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Frameset
Frame
Canyon Neuron CF
Rear suspension
DT Swiss R535
Front suspension
DT Swiss F535
Wheels
Rims
DT Swiss XMC 1200 XD
Tires
Schwalbe Nobby Nic 2.35"

Geometry

Size XS SM MD LG XL
a
Seat tube length
400,0
400,0
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
558,0
581,0
603,0
626,0
654,0
d
Head tube length
88,0
100,0
102,0
112,0
143,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
52,0
g
Trail
95,0
94,0
98,0
99,0
99,0
h
Wheelbase
1121,0
1146,0
1167,0
1190,0
1222,0
i
Chainstay length
430,0
430,0
440,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
38,0
38,0
38,0
k
Stack height
578,0
589,0
614,0
623,0
651,0
l
Reach
398,0
418,0
433,0
453,0
473,0
m
Standover height
758,0
762,0
780,0
785,0
796,0
x
Bottom bracket height
337,0
337,0
336,0
336,0
336,0
y
Front center
692,0
717,0
730,0
753,0
785,0
