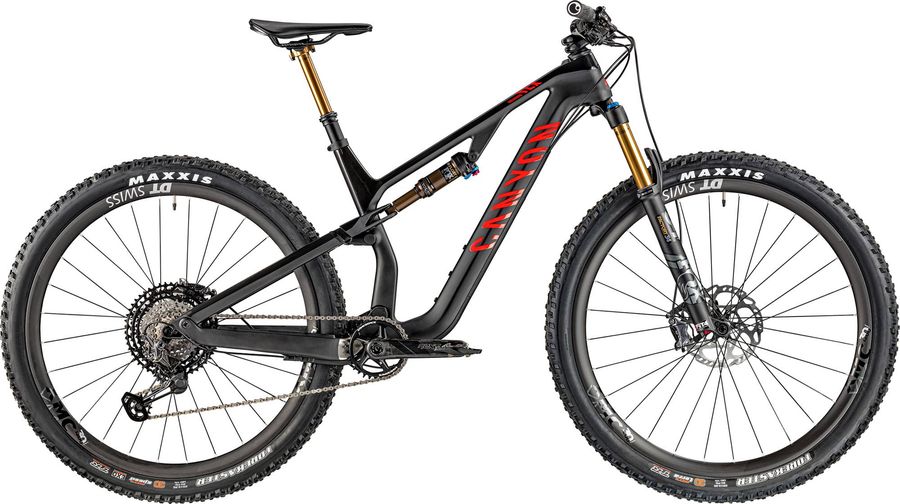

Canyon Neuron CF SLX 9.0 LTD 2020

Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
11,72 kg
Front travel
130mm
Rear travel
130mm
Canyon Neuron CF SLX 9.0 LTD 2020

About the Canyon Neuron CF SLX 9.0 LTD 2020

The Canyon Neuron CF SLX 9.0 LTD 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 11,72 kg.


Features

The Canyon Neuron CF SLX 9.0 LTD 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Canyon V12
Saddle
Fizik Taiga
Seatpost
SP FOX TRANSFER FAC RM 1X 30,9X456 150
Handlebar
Canyon H23 Carbon Riserbar, Material: Carbon, Rise: 15 mm
Discs
Shimano RT70, Disc Mount: Centerlock
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Race Face Next SL G5 Carbon 32T 32
Shifter
Shimano XTR M9100 12s, Clamp: I-Spec EV
Bottom bracket
Race Face BSA Cinch
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Neuron CF SLX, Material: Carbon, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Factory
Rear suspension
Fox Float DPS Factory
Wheels
Rims
DT Swiss XMC 1200 SH12, Rim Material: Carbon, Inner Width: 30 mm, Freewheel: Ratchet, Weight: 845 g
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size MD LG XL
a
Seat tube length
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
597,0
620,0
648,0
d
Head tube length
102,0
112,0
143,0
e
Head tube angle
67,5º
67,5º
67,5º
f
Rake
53,0
52,0
52,0
g
Trail
98,0
99,0
99,0
h
Wheelbase
1161,0
1184,0
1216,0
i
Chainstay length
434,0
434,0
434,0
j
Bottom bracket drop
38,0
38,0
38,0
k
Stack height
608,0
617,0
645,0
l
Reach
427,0
447,0
467,0
m
Standover height
774,0
779,0
790,0
x
Bottom bracket height
336,0
336,0
336,0
y
Front center
730,0
753,0
785,0
