Canyon Neuron CF SLX LTD 2022

MTB Trail
Groupset
SRAM X01 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,32 kg
Front travel
140mm
Rear travel
130mm

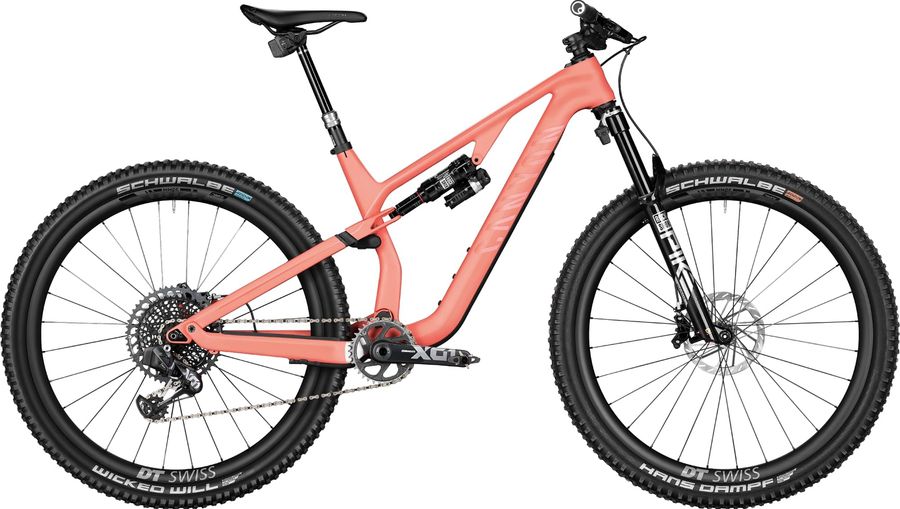

Canyon Neuron CF SLX LTD 2022

About the Canyon Neuron CF SLX LTD 2022

The Canyon Neuron CF SLX LTD 2022 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,32 kg.

Features

The Canyon Neuron CF SLX LTD 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20, High-grade lock-on grips providing comfort and control in equal measure.
Pedals
None included
Components
Steam
Canyon V12, Robust Canyon aluminium stem. Length: 60 mm. Clamp diameter: 31.8 mm.
Saddle
Ergon SM10 Sport Men
Seatpost
RockShox Reverb AXS, Wireless seatpost with AXS technology. With handlebar remote and 150 mm of stepless height adjustment. Seatpost width: 30.9 mm., Clamp diameter: 30,9 mm
Handlebar
Canyon H23 Carbon Riserbar, Ergonomic Canyon carbon handlebar. Width: 760 mm. Rise: 15 mm. Clamp diameter: 31.8 mm., Width: 760 mm
Discs
SRAM HS2 180 mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X01 Eagle AXS DUB, Lightweight, robust direct-mount carbon crank with 32-tooth chainring. Crank arm length: 175 mm., Number of chainrings: 1
Shifter
SRAM Eagle AXS Rocker 12s
Bottom bracket
SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm.
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM X01 Eagle AXS 12s
Cage material
Aluminum
Color
Black, Grey, Lunar, Red
Max tooth
52
Model
RD-X0-1E-A1
Name
X01 Eagle AXS Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM XG-1299 Eagle 12s
Cog finish cassete
Copper, Gold, Rainbow
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1299-B1
Name
XG-1299 Eagle Cassette
Speed
12s
Technology cassete
XG
Frameset
Frame
Canyon Neuron CF SLX, Top-end full-carbon frame. Category: 3., Material: Carbon (CF)
Front suspension
RockShox Pike Ultimate DebonAir
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B4
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
DT Swiss XMC1200 29", Light, durable, premium 29-inch carbon wheel. Tubeless-ready. Internal rim width: 30 mm. Axle dimensions: boost, 15 x 110 mm., Rotor Mount: IS 6-bolt, Wheelsize: 29" | DT Swiss XMC 1200 XD, Light, durable, high-end 29-inch carbon wheel. Tubeless-ready. With reliable Ratchet EXP freewheel. Internal rim width: 30 mm. Axle dimensions: 12 x 148 mm., Rotor Mount: IS 6-bolt, Wheelsize: 29"
Tires
Schwalbe Hans Dampf 2.35", The original all-rounder, the Hans Dampf rolls quick yet offers reliable traction in a wide range of conditions. | Schwalbe Wicked Will, SuperTrail, Addix SpeedGrip, 2.4", Wheelsize: 29"

Geometry

Size MD LG XL
a
Seat tube length
445,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
597,0
620,0
648,0
d
Head tube length
102,0
112,0
143,0
e
Head tube angle
67,0º
67,0º
67,0º
f
Rake
47,0
46,0
46,0
g
Trail
108,0
109,0
109,0
h
Wheelbase
1161,0
1184,0
1216,0
i
Chainstay length
434,0
434,0
434,0
j
Bottom bracket drop
38,0
38,0
38,0
k
Stack height
608,0
617,0
645,0
l
Reach
427,0
447,0
467,0
m
Standover height
778,0
782,0
793,0
x
Bottom bracket height
336,0
336,0
336,0
y
Front center
730,0
753,0
785,0
