Canyon Neuron WMN AL 7.0 2019

Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

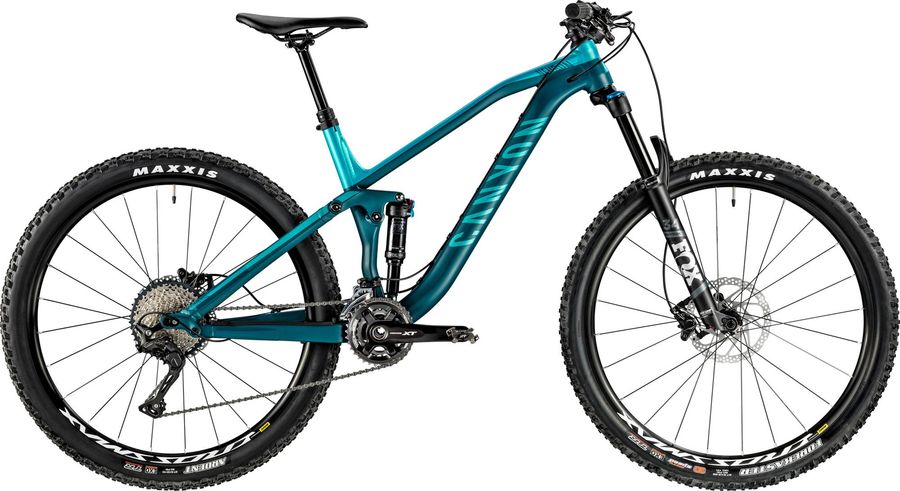

Canyon Neuron WMN AL 7.0 2019

About the Canyon Neuron WMN AL 7.0 2019

The Canyon Neuron WMN AL 7.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 22 gears (2x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Neuron WMN AL 7.0 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Lock-On
Pedals
None included
Components
Steam
Iridium
Saddle
Iridium WMN Fitness
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT56, Disc Mount: 6-Hole
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano Deore XT M8000 34/24 34/24
Shifter
Shimano SLX M7000 11s
Bottom bracket
Shimano Pressfit BB-MT500
Front derailleur
Shimano SLX M7020
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Rear derailleur
Shimano RD-M8000-SGS 275 g SGS 11s
Average weight (g)
275
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
40T(3x11-speed),
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
47T
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Mavic Crossmax SH11, Rim Material: Aluminium, Weight: 1047 g
Tires
MAXXIS Ardent 2.4", Casing: Exo, Compound: Dual, Technology: Tubeless ready

Geometry

Size XS SM MD LG
a
Seat tube length
440,0
440,0
480,0
480,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
563,0
587,0
611,0
636,0
d
Head tube length
85,0
100,0
100,0
120,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
g
Trail
95,0
94,0
98,0
99,0
h
Wheelbase
1124,0
1150,0
1174,0
1201,0
i
Chainstay length
434,0
434,0
446,0
446,0
j
Bottom bracket drop
17,0
17,0
38,0
38,0
k
Stack height
580,0
594,0
618,0
636,0
l
Reach
404,0
424,0
441,0
461,0
m
Standover height
778,0
782,0
805,0
814,0
x
Bottom bracket height
338,0
338,0
336,0
336,0
y
Front center
691,0
717,0
731,0
758,0
