Canyon Neuron WMN AL 7.0 2021

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Weight
14,53 kg
Front travel
130mm
Rear travel
130mm

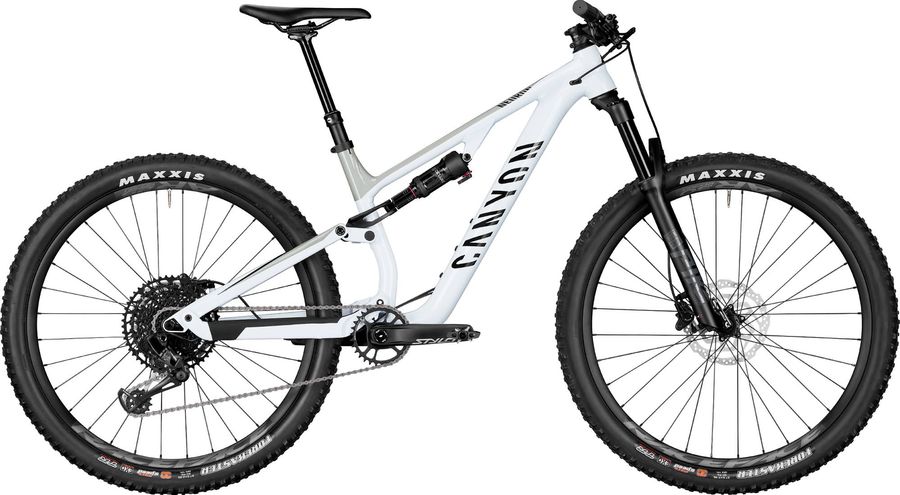

Canyon Neuron WMN AL 7.0 2021

About the Canyon Neuron WMN AL 7.0 2021

The Canyon Neuron WMN AL 7.0 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,53 kg.

Features

The Canyon Neuron WMN AL 7.0 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Pedals
None included
Components
Steam
Iridium
Saddle
Iridium WMN Fitness
Seatpost
Iridium Dropper
Handlebar
Iridium Flatbar, Material: Aluminium, Rise: 5 mm
Discs
Shimano RT10, Disc Mount: Centerlock
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T
Shifter
SRAM NX Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Neuron AL, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
RaceFace AR25 | Shimano MT510 SH11, Rim Material: Aluminium, Inner Width: 25 mm | RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XXS XS SM MD LG
a
Seat tube length
400,0
400,0
400,0
445,0
480,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
539,0
559,0
581,0
603,0
626,0
d
Head tube length
90,0
90,0
100,0
100,0
112,0
e
Head tube angle
67,0º
67,0º
67,0º
67,5º
67,5º
f
Rake
52,0
52,0
52,0
53,0
52,0
g
Trail
102,0
102,0
102,0
98,0
99,0
h
Wheelbase
1102,0
1122,0
1146,0
1166,0
1190,0
i
Chainstay length
430,0
430,0
430,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
18,0
38,0
38,0
k
Stack height
579,0
579,0
589,0
612,0
623,0
l
Reach
378,0
398,0
418,0
433,0
453,0
m
Standover height
751,0
751,0
755,0
774,0
780,0
x
Bottom bracket height
356,0
356,0
356,0
336,0
336,0
y
Front center
673,0
693,0
717,0
729,0
753,0
