Canyon Neuron WMN CF 9.0 2020

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
12,6 kg
Front travel
130mm
Rear travel
130mm

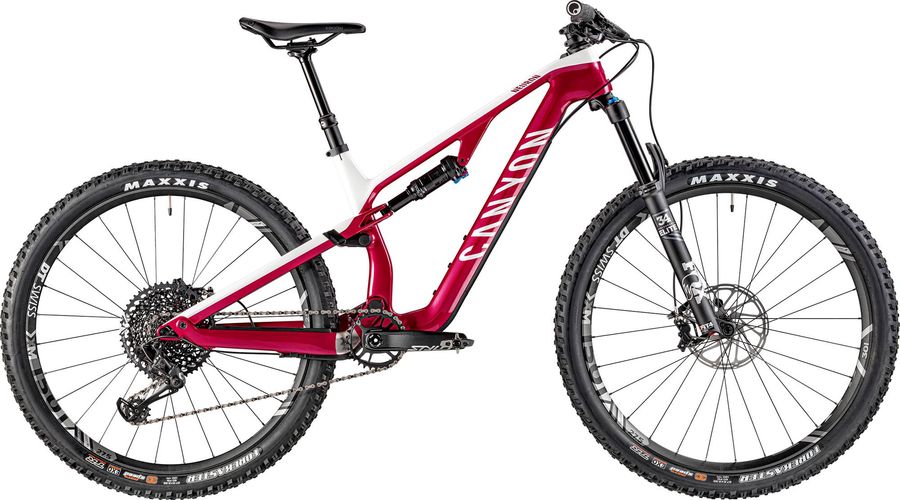

Canyon Neuron WMN CF 9.0 2020

About the Canyon Neuron WMN CF 9.0 2020

The Canyon Neuron WMN CF 9.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 12,6 kg.

Features

The Canyon Neuron WMN CF 9.0 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GA20
Pedals
None included
Components
Steam
Race Face Ride
Saddle
Ergon SM10 Sport Women
Seatpost
Iridium Dropper
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 10 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM BSA DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
CANYON Neuron CF
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
DT Swiss XM 1501 XD, Rim Material: Aluminium, Inner Width: 25 mm, Freewheel: Ratchet
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD LG
a
Seat tube length
400,0
400,0
445,0
480,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
558,0
581,0
603,0
626,0
d
Head tube length
88,0
100,0
102,0
112,0
e
Head tube angle
67,0º
67,0º
67,5º
67,5º
f
Rake
51,0
52,0
53,0
52,0
g
Trail
95,0
94,0
98,0
99,0
h
Wheelbase
1121,0
1146,0
1167,0
1190,0
i
Chainstay length
430,0
430,0
440,0
440,0
j
Bottom bracket drop
18,0
18,0
38,0
38,0
k
Stack height
578,0
589,0
614,0
623,0
l
Reach
398,0
418,0
433,0
453,0
m
Standover height
758,0
762,0
780,0
785,0
x
Bottom bracket height
337,0
337,0
336,0
336,0
y
Front center
692,0
717,0
730,0
753,0
