BikeWise

Canyon Neuron:ON 5.0 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

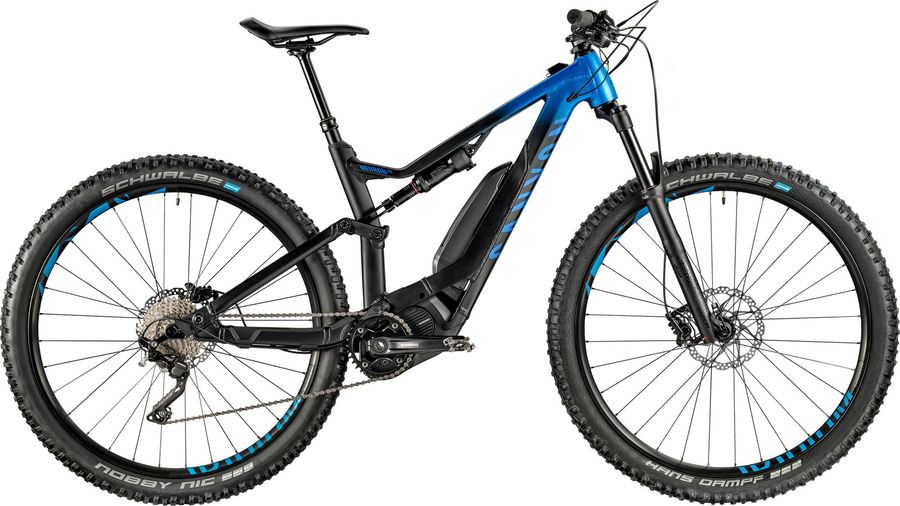

Canyon Neuron:ON 5.0 2019

About the Canyon Neuron:ON 5.0 2019

The Canyon Neuron:ON 5.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Neuron:ON 5.0 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On
Remote
Shimano Steps E7000
Components
Steam
Race Face Ride
Saddle
Canyon SD:ON
Battery
Shimano Steps E8010 504 Wh
Seatpost
Iridium Dropper
Handlebar
Race Face Ride Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT54, Disc Mount: Centerlock
Brakes
Shimano Deore BR-MT501
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000
Shifter
Shimano Deore M6000 10s, Clamp: I-Spec II
Rear derailleur
Shimano RD-M786-SGS 266 g SGS 10s
Average weight (g)
266
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt material
Stainless steel
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M786-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
G pulley bearing
Sealed bearing
Sunken type pulley bolt
T pulley bearing
Sealed bearing
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Chain
Shimano CN-HG54 273 g
Average weight (g)
273
Chromizing treatment roller link pin
Model
CN-HG54
Pin link plate
Gray
Roller link plate
Brown
Type
HG-X 10-speed
Cassette
Shimano Deore CS-HG500-10
Frameset
Frame
Canyon Neuron:On, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Recon RL Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCN-RL-A1
Name
Recon RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm, 80mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Alexrims EM30 | Shimano MT400 SH11, Rim Material: Aluminium, Inner Width: 30 mm
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size XS SM MD LG XL
a
Seat tube length
420,0
430,0
440,0
480,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
587,0
614,0
638,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
140,0
e
Head tube angle
66,3º
66,3º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
52,0
52,0
52,0
g
Trail
100,0
100,0
99,0
99,0
99,0
h
Wheelbase
1139,0
1161,0
1175,0
1201,0
1226,0
i
Chainstay length
441,0
441,0
443,0
443,0
443,0
j
Bottom bracket drop
20,0
20,0
30,0
30,0
30,0
k
Stack height
587,0
591,0
617,0
631,0
644,0
l
Reach
398,0
418,0
438,0
458,0
478,0
m
Standover height
763,0
767,0
782,0
788,0
791,0
x
Bottom bracket height
335,0
335,0
344,0
344,0
344,0
y
Front center
699,0
721,0
734,0
760,0
785,0
