Canyon Neuron:ON 7.0 2019

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
130mm

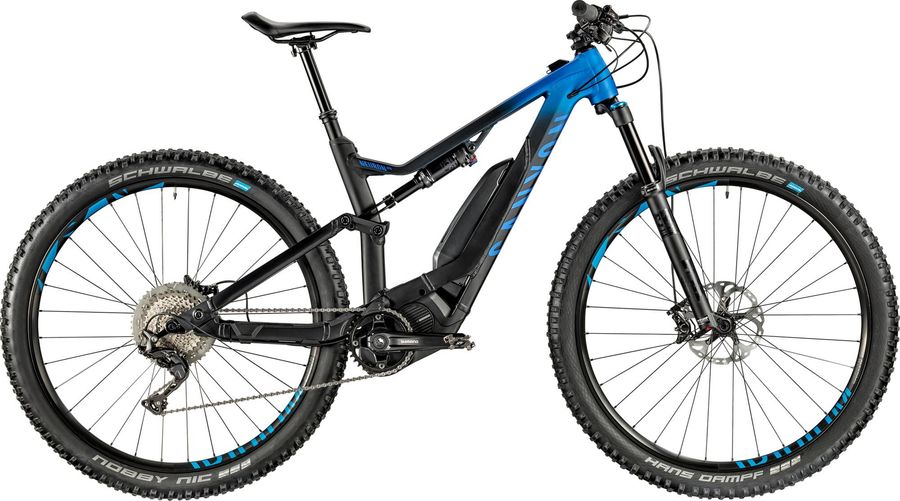

Canyon Neuron:ON 7.0 2019

About the Canyon Neuron:ON 7.0 2019

The Canyon Neuron:ON 7.0 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Neuron:ON 7.0 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On
Remote
Shimano Steps E7000
Components
Steam
Race Face Aeffect R
Saddle
Canyon SD:ON
Battery
Shimano Steps E8010 504 Wh
Seatpost
FOX Transfer Performance Elite
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT70, Disc Mount: Centerlock
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000
Shifter
Shimano Deore XT M8000 11s, Clamp: I-Spec II
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano Deore XT CS-M8000 HG
Aluminum gear pieces
2
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
2
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8000
Steel gear finish
Shot-Ni
Steel gear pieces
9
Type
HG
Weights
11-40T: 411g
11-42T: 434g
11-46T: 437g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Canyon Neuron:On, Material: Aluminium 6061, Travel: 130 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance
Wheels
Rims
Alexrims EM30 | Shimano Deore XT SH11, Rim Material: Aluminium, Inner Width: 30 mm, Hub Type: M8010
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size XS SM MD LG XL
a
Seat tube length
420,0
430,0
440,0
480,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
565,0
587,0
614,0
638,0
662,0
d
Head tube length
95,0
100,0
110,0
125,0
140,0
e
Head tube angle
66,3º
66,3º
67,5º
67,5º
67,5º
f
Rake
51,0
51,0
52,0
52,0
52,0
g
Trail
100,0
100,0
99,0
99,0
99,0
h
Wheelbase
1139,0
1161,0
1175,0
1201,0
1226,0
i
Chainstay length
441,0
441,0
443,0
443,0
443,0
j
Bottom bracket drop
20,0
20,0
30,0
30,0
30,0
k
Stack height
587,0
591,0
617,0
631,0
644,0
l
Reach
398,0
418,0
438,0
458,0
478,0
m
Standover height
763,0
767,0
782,0
788,0
791,0
x
Bottom bracket height
335,0
335,0
344,0
344,0
344,0
y
Front center
699,0
721,0
734,0
760,0
785,0
