Canyon Neuron:ON 7 WMN 2021

E-Bike
Women's Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
23,5 kg
Front travel
120mm
Rear travel
130mm

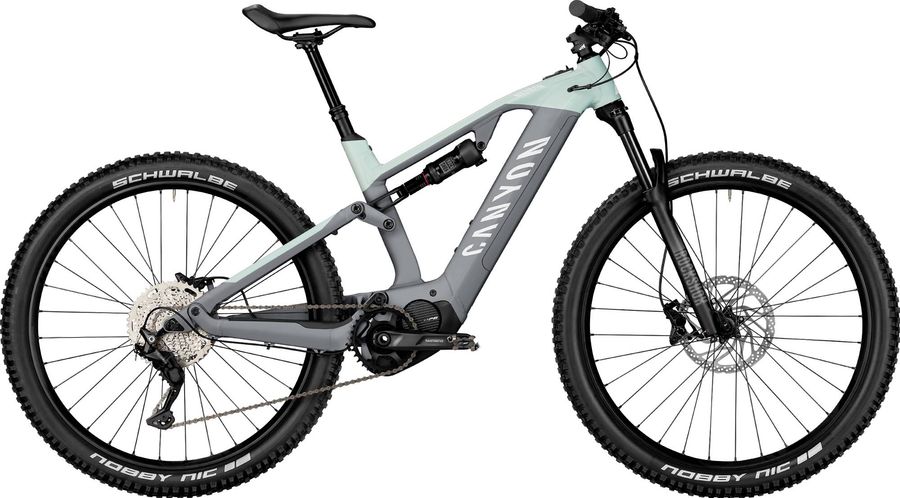

Canyon Neuron:ON 7 WMN 2021

About the Canyon Neuron:ON 7 WMN 2021

The Canyon Neuron:ON 7 WMN 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 23,5 kg.

Features

The Canyon Neuron:ON 7 WMN 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Components
Steam
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano STEPS 504-Wh Battery, Lithium-Ion battery, IPX5 water resistant, 3.1 Kg, adaptor for external charging not included
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Discs
Shimano Tourney TX front rotor, 203mm, Center lock mounting for quick installation/removal. Resin pad only. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano STEPS E-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Motor
Shimano EP8
Shifter
Shimano Deore, 10-speed, Rear derailleur shifter, 10-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Rear derailleur
Shimano Deore RD-M6000-SGS SGS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M6000-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)
Front suspension
RockShox Judy Silver
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
Iridium 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | TRYP 30 | Shimano MT400, Shimano MT400 rear hub with Boost 148 spacing, TRYP 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic Performance, 2.6, 29x2.6"

Geometry

Size XS SM MD
a
Seat tube length
380,0
420,0
440,0
b
Seat tube angle
75,0º
75,0º
74,5º
c
Top tube length
548,0
556,0
593,0
d
Head tube length
100,0
100,0
120,0
e
Head tube angle
66,5º
66,5º
67,5º
f
Rake
40,0
30,0
51,0
g
Trail
111,0
122,0
100,0
h
Wheelbase
1125,0
1145,0
1171,0
i
Chainstay length
432,0
432,0
437,0
j
Bottom bracket drop
20,0
20,0
33,0
k
Stack height
581,0
604,0
622,0
l
Reach
402,0
422,0
432,0
m
Standover height
763,0
769,0
795,0
x
Bottom bracket height
335,0
335,0
341,0
y
Front center
694,0
714,0
736,0
