Canyon Neuron:ON 8 WMN 2022

E-Bike
Women's Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
24,45 kg
Front travel
120mm
Rear travel
130mm

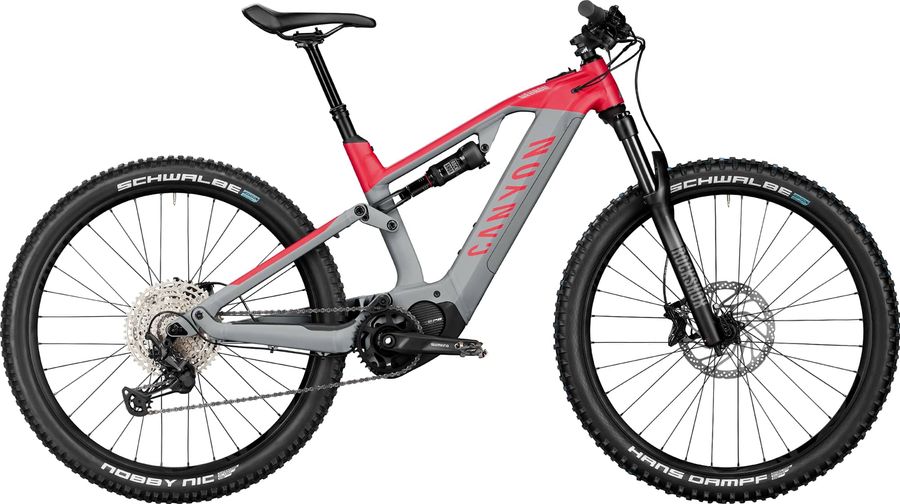

Canyon Neuron:ON 8 WMN 2022

About the Canyon Neuron:ON 8 WMN 2022

The Canyon Neuron:ON 8 WMN 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,45 kg.

Features

The Canyon Neuron:ON 8 WMN 2022 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Remote
Shimano Steps SC-E7000 Display
Components
Steam
Canyon:ON Stem, 35mm clamp diameter, 60mm length
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano BT-E8036 Akku 630WH
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 760mm width, 35mm clamp diameter, 20mm rise
Discs
Shimano Tourney TX front rotor, A big Shimano RT830 brake rotor delivers equally big stopping power. | Shimano EM300 STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. Center lock mounting for quick installation/removal. Resin pad only.
Brakes
Shimano Deore
Drivetrain
Crankset
Shimano STEPS e-MTB crank arms, Designed for the rigors of E-MTB riding, 24mm spindle, 170mm crank arms
Motor
Shimano Steps EP8 Motor
Shifter
Shimano Deore, 12-speed, Rear derailleur shifter, 12-speed, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 10-degrees rotation adjustment, 133 g
Bottom bracket
STEPS, press-fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
Canyon Neuron:ON, Aluminium frame, 130mm of rear suspension on Med-XL frames (125mm travel on XS-SM frames), award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (180)
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Front suspension
RockShox 35 Silver
Wheels
Rims
Rodi TRYP 30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, Iridium 30 aluminum rim, 30mm inner rim width | Iridium 30 | Shimano MT410, Shimano MT410 rear hub with Boost 148 spacing, Iridium 30 aluminum rim, 30mm inner rim width
Tires
Schwalbe Nobby Nic SuperTrail Speedgrip, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version | Schwalbe Hans Dampf SuperTrail, 2.6, 29x2.6". Super Trail version, highly puncture-resistant with Apex sidewall protection, and bead-to-bead Snakeskin fabric layer, Tubeless Easy version

Geometry

Size XS SM MD
a
Seat tube length
380,0
420,0
440,0
b
Seat tube angle
75,0º
75,0º
74,5º
c
Top tube length
548,0
556,0
593,0
d
Head tube length
100,0
100,0
120,0
e
Head tube angle
66,5º
66,5º
67,5º
f
Rake
40,0
30,0
51,0
g
Trail
111,0
122,0
100,0
h
Wheelbase
1125,0
1145,0
1171,0
i
Chainstay length
432,0
432,0
437,0
j
Bottom bracket drop
20,0
20,0
33,0
k
Stack height
581,0
604,0
622,0
l
Reach
402,0
422,0
432,0
m
Standover height
763,0
769,0
795,0
x
Bottom bracket height
335,0
335,0
341,0
y
Front center
694,0
714,0
736,0
