Canyon Neuron:ON 9.0 2020

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Full suspension
Weight
22,9 kg
Front travel
130mm
Rear travel
130mm

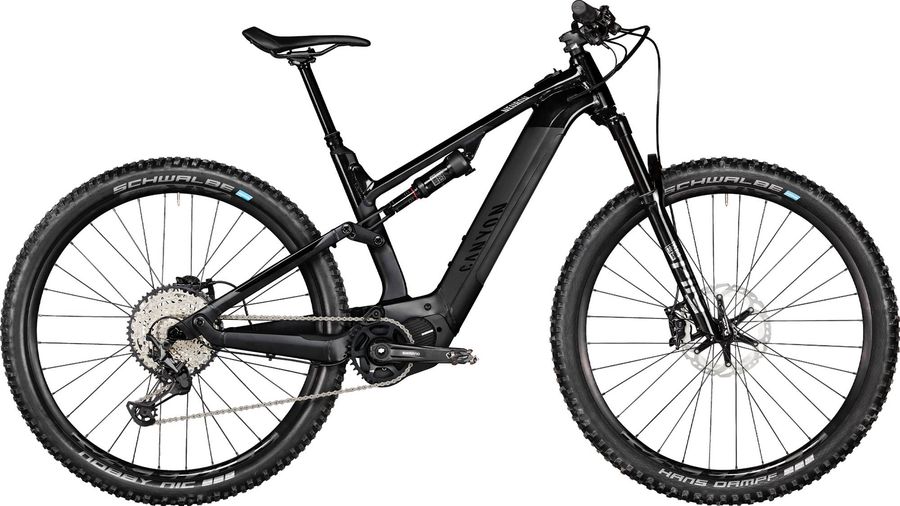

Canyon Neuron:ON 9.0 2020

About the Canyon Neuron:ON 9.0 2020

The Canyon Neuron:ON 9.0 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,9 kg.

Features

The Canyon Neuron:ON 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On
Components
Steam
Canyon:ON ST0030
Saddle
Canyon SD:ON
Battery
Shimano Steps E8035 504 Wh, Capacity: 504Wh/14 Ah, IPX5 water-resistant, Voltage: 36 V, Technology: Li-Ion, Weight: 2.9 kg
Seatpost
Iridium Dropper
Handlebar
Canyon:ON HB0056 Riserbar
Discs
Shimano EM810
Brakes
Shimano Deore XT BR-M8100 392 (BL-M8100) g Hydraulic disc brake 2 piston
Average weight (g)
392 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8100
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J03A Resin (w/ fin)
Pad option
J04C Metal (w/ fin)
Pad standard
G03A Resin (w/o fin)
Pad standard
G04S Metal (w/o fin)
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano Deore XT M8100 12s, Clamp: I-Spec EV
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Neuron:On, Material: Aluminium 6061, Travel: 135 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Front suspension
RockShox Pike Ultimate DebonAir
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B4
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
RaceFace AR30 | Shimano M8110
Tires
Schwalbe Nobby Nic 2.6'', Compound: Addix Speedgrip, Technology: Tubeless Easy

Geometry

Size SM MD LG XL
a
Seat tube length
420,0
440,0
480,0
520,0
b
Seat tube angle
75,0º
74,5º
74,5º
74,5º
c
Top tube length
562,0
599,0
620,0
641,0
d
Head tube length
100,0
120,0
130,0
140,0
e
Head tube angle
66,5º
67,5º
67,5º
67,5º
f
Rake
30,0
51,0
50,0
50,0
g
Trail
122,0
100,0
101,0
101,0
h
Wheelbase
1151,0
1177,0
1,2e3
1224,0
i
Chainstay length
438,0
443,0
443,0
443,0
j
Bottom bracket drop
20,0
33,0
33,0
33,0
k
Stack height
610,0
628,0
637,0
647,0
l
Reach
428,0
438,0
458,0
478,0
m
Standover height
775,0
801,0
803,0
811,0
x
Bottom bracket height
335,0
341,0
341,0
341,0
y
Front center
714,0
736,0
759,0
783,0
