Canyon Sender AL 5.0 2019

MTB Downhill
Groupset
SRAM GX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
17,1 kg
Front travel
200mm
Rear travel
200mm

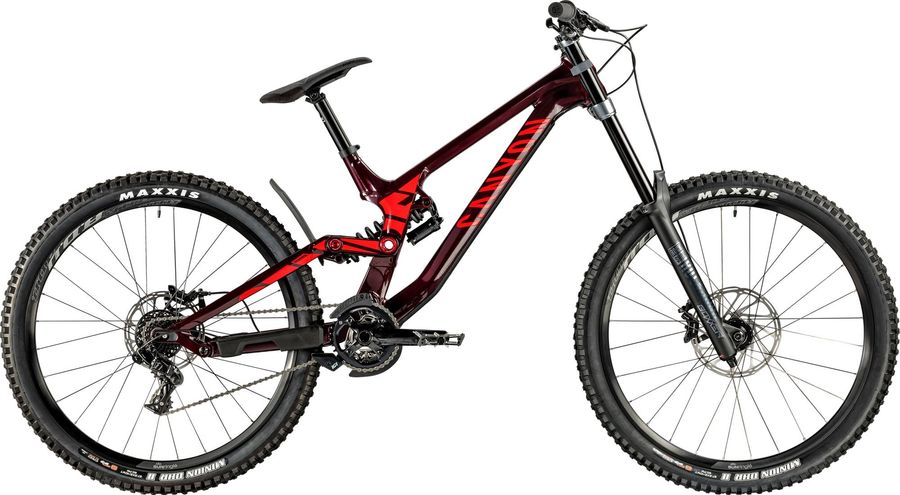

Canyon Sender AL 5.0 2019

About the Canyon Sender AL 5.0 2019

The Canyon Sender AL 5.0 2019 is a Full suspension Downhill Mountain Bike with a alloy frame. Equipped with a SRAM GX drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 17,1 kg.

Features

The Canyon Sender AL 5.0 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Race Face Chester
Saddle
SDG I-Fly
Headset
Acros DH
Seatpost
SDG I-Beam
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide RE Hydraulic 415 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RE-A1
Name
Guide RE
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
415
Drivetrain
Crankset
Truvativ Descendant DH 36T 36
Shifter
SRAM GX Trigger 7s
Bottom bracket
SRAM BSA GXP XR
Rear derailleur
SRAM GX DH 7s
Cable pull ratio
Exact actuation
Cage
Medium
Cage material
Aluminum
Color
Black
Max tooth
28
Model
RD-GX-1DH-A3
Name
GX DH 1x X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
7s
Cassette
SRAM PG-720 7s 224 g
Cog finish cassete
Black
Cog sizes
11-25t:11,13,15,17,19,22,25
Gearing
11-25t
Model
CS-PG-720-A1
Name
PG-720 Cassette
Speed
7s
Technology cassete
PG
Weight
224
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Canyon Sender AL, Material: Aluminium 6061, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Boxxer RC Coil
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-RC-B2
Name
BoXXer RC
Spring
Coil
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Rear suspension
RockShox Super Deluxe R
Body eyelet
Bearing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLX-R-B1
Name
Super Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Sun Ringle ADD Comp SH11, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 790 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
450,0
450,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
586,0
611,0
635,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
49,0
50,0
49,0
50,0
g
Trail
126,0
125,0
126,0
125,0
h
Wheelbase
1207,0
1232,0
1256,0
1281,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
599,0
607,0
616,0
625,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
735,0
740,0
743,0
747,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
777,0
802,0
826,0
851,0
