Groupset
Shimano Zee
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,8 kg
Front travel
200mm
Rear travel
200mm

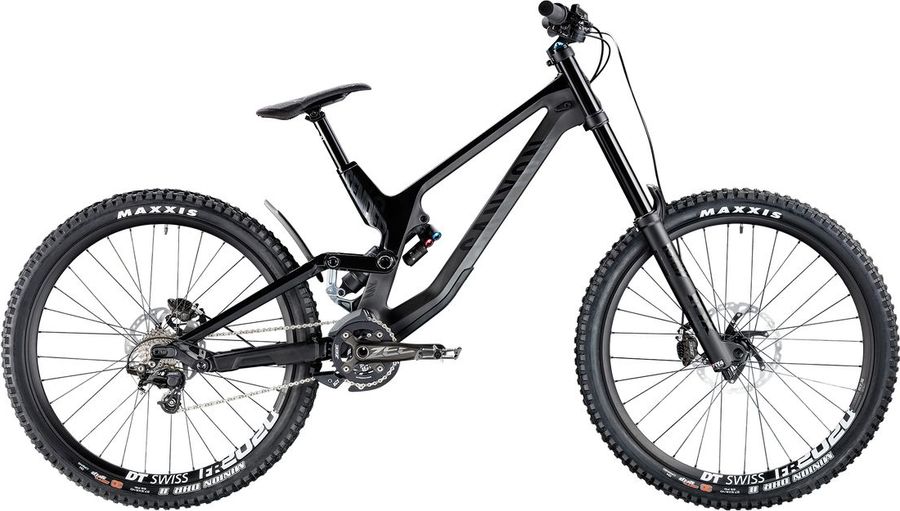

About the Canyon Sender CF 8.0 2018
The Canyon Sender CF 8.0 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Zee drivetrain. Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 16,8 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Canyon Lock On w/ Flange
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V22-16, Rise: 50 mm, Stem designed by Canyon, Compliant with Canyon Category 5 testing standards
|
|---|---|
|
Saddle
|
SDG I-Fly Custom, EVA foam shell
|
|
Headset
|
Acros DH
|
|
Seatpost
|
SDG Micro I-Beam SP
|
|
Handlebar
|
Canyon Aluminum, Width: 800 mm, Rise: 20 mm, In-house developed Canyon handlebars with lightweight aluminum construction and balanced geometry
|
|
Brakes
|
Shimano ZEE BR-M640
314 ** g
Hydraulic disc brake
4 piston
|
|
H03A Resin D03S Resin |
|
|
Crankset
|
Shimano Zee, 10s, The ZEE cranks provide a solid platform for aggressive riding on any terrain, 2-piece construction
|
|---|---|
|
Cassette
|
Shimano Zee, 10s, Material: Aluminium spider / chrome coated steel sprocket, 10 Speed Dyna Sys System, CS-HG81-10, Two spiders, Aluminium lock ring, Ratio: 11-12-13-14-15-17-19-21-23-25z
|
|
Shifter
|
Shimano Zee, 10s, Rapid Fire Plus shift levers with inner, 2 Way Release
|
|
Chain guide
|
e.thirteen LG1+ | Bashguard | AL Backplate
|
|
Bottom bracket
|
Shimano BSA
|
|
Chain
|
KMC X10
|
|
Rear derailleur
|
Shimano Zee RD-M640-SS
275 g
SS
10s
|
|
28T(DH spec) |
|
|
Frame
|
Canyon Sender CF, Highly impact- and fatigue-resistant carbon main frame, Premium 6066 T6 aluminium rear triangle, Motocross-inspired MX Link, Geo Tune enables six distinct geometry settings by adjusting head angle and chainstay length, Long-lasting, smooth industrial bearings throughout, Protection at key points across frame keeps structure unharmed, SAG Monitor for simplified shock tuning, Sound-proofed Internal Cable and line Routing, Weight: Approx. 3795g (M)
|
|---|---|
|
Front suspension
|
Fox 40 Performance Elite
|
|
Rear suspension
|
Fox Float X2
|
|
Rims
|
DT Swiss FR 2020, Ratchet System freehub, Compatible with clincher or tubelesss tyre systems, Internal width: 27.5 mm
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 3C Maxx Grip DW, 3C MaxxGrip | TR | EXO | 60 TPI, Redesigned, wider shoulder knobs for better cornering, Paddle-like center knobs for improved braking, Width: 2.4 inches
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
450,0
|
450,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
562,0
|
586,0
|
611,0
|
635,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
63,0º
|
63,0º
|
|
f
Rake
|
49,0
|
50,0
|
49,0
|
50,0
|
|
g
Trail
|
126,0
|
125,0
|
126,0
|
125,0
|
|
h
Wheelbase
|
1207,0
|
1232,0
|
1256,0
|
1281,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
6,0
|
6,0
|
6,0
|
6,0
|
|
k
Stack height
|
599,0
|
607,0
|
616,0
|
625,0
|
|
l
Reach
|
420,0
|
440,0
|
460,0
|
480,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
349,0
|
349,0
|
349,0
|
349,0
|
|
y
Front center
|
777,0
|
802,0
|
826,0
|
851,0
|
