Canyon Sender CF 8.0 2019

MTB Downhill
Groupset
Shimano Saint
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
203mm
Rear travel
200mm
Canyon Sender CF 8.0 2019

About the Canyon Sender CF 8.0 2019

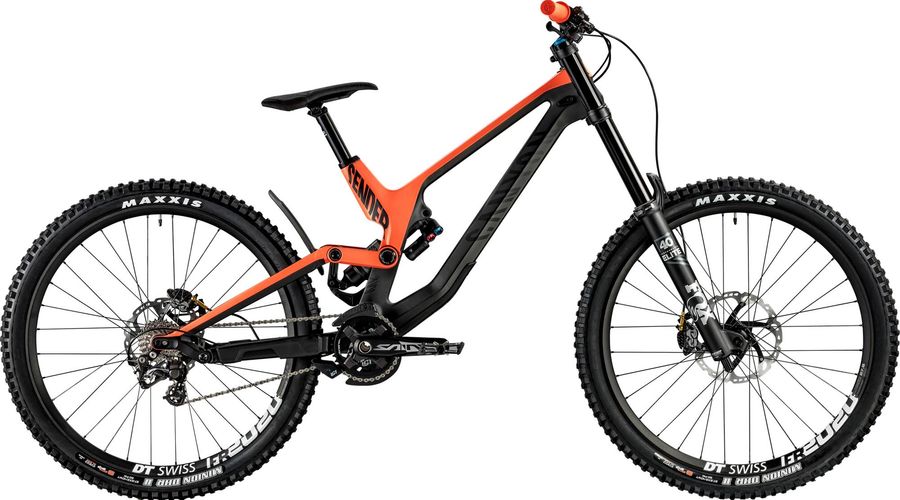

The Canyon Sender CF 8.0 2019 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a Shimano Saint drivetrain of 10 gears (1x10). Its features include boost 110 e hydraulic disc brakes.

Features

The Canyon Sender CF 8.0 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Canyon V22
Saddle
SDG I-Fly
Headset
Acros AZX-227
Seatpost
SDG I-Beam
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT86, Disc Mount: 6-Hole
Brakes
Shimano Saint BR-M820 438 (BL-M820) g Hydraulic disc brake 4 piston
Average weight (g)
438 (BL-M820)
Brake hose color kit
Black
Brake hose color kit
White
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M820
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
SM-RT86
Drivetrain
Crankset
Shimano Saint M825 36T 36
Shifter
Shimano Saint M820 10s
Chain
KMC X10
Rear derailleur
Shimano RD-M820-SS 280 (w/o mode converter) g SS 10s
Average weight (g)
280 (w/o mode converter)
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
28/36T
Lower pulley min
23T
Model
RD-M820-SS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SS
Speeds
10
Upper pulley max
12T
Upper pulley min
11T
Total capacity
25T
Cassette
Shimano CS-5700
Frameset
Frame
Canyon Sender CF, Material: Carbon, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Front suspension
Fox 40 Performance Elite
Rear suspension
Fox Float X2 Performance
Wheels
Rims
DT Swiss FR 2020 Classic SH11, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 1098 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
450,0
450,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
586,0
611,0
635,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
49,0
50,0
49,0
50,0
g
Trail
126,0
125,0
126,0
125,0
h
Wheelbase
1207,0
1232,0
1256,0
1281,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
599,0
607,0
616,0
625,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
735,0
740,0
743,0
747,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
777,0
802,0
826,0
851,0
