Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
16,2 kg
Front travel
200mm
Rear travel
200mm

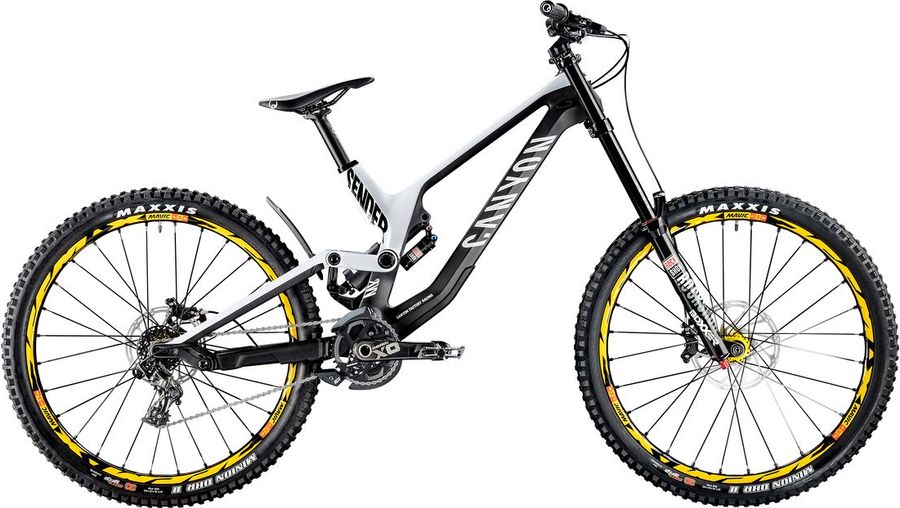

About the Canyon Sender CF 9.0 Team 2018
The Canyon Sender CF 9.0 Team 2018 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain. Its features include internal routing e hydraulic disc brakes. The bike weighs approximately 16,2 kg.
Features
Internal routing
More info
Internal routing
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Ergon GD1
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Canyon V22-16, Rise: 50 mm, Stem designed by Canyon, Compliant with Canyon Category 5 testing standards
|
|---|---|
|
Saddle
|
Ergon SMD2
|
|
Headset
|
Acros DH
|
|
Seatpost
|
Canyon G5
|
|
Handlebar
|
Canyon H24-16 CF, Diameter: 31.8 MM
|
|
Brakes
|
SRAM Code RSC
Hydraulic
|
|
|
|
|
Crankset
|
SRAM X01 DH
|
|---|---|
|
Shifter
|
SRAM X01 DH, 7s, SRAM 1X™ X-ACTUATION™ for easy indexing and lasting shift accuracy, Highly adjustable trigger shift, ZERO LOSS™ technology for rapid changes, MatchMaker™ X compatible
|
|
Chain guide
|
e.thirteen LG1+ | Bashguard | AL Backplate
|
|
Bottom bracket
|
SRAM GXP
|
|
Rear derailleur
|
SRAM X01 DH X-HORIZON Rear Derailleur
7s
|
|
|
|
|
Cassette
|
SRAM XG-795
7s
136 g
|
|
|
|
|
Chain
|
SRAM PC-1110
259 g
|
|
|
|
|
Frame
|
Canyon Sender CF, Highly impact- and fatigue-resistant carbon main frame, Premium 6066 T6 aluminium rear triangle, Motocross-inspired MX Link, Geo Tune enables six distinct geometry settings by adjusting head angle and chainstay length, Long-lasting, smooth industrial bearings throughout, Protection at key points across frame keeps structure unharmed, SAG Monitor for simplified shock tuning, Sound-proofed Internal Cable and line Routing, Weight: Approx. 3795g (M)
|
|---|---|
|
Rear suspension
|
RockShox Vivid Air R2C
586 g
|
|
|
|
|
Front suspension
|
RockShox Boxxer World Cup
Solo Air
|
|
|
|
|
Rims
|
Mavic Deemax DH
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 3C Maxx Grip DW, 3C MaxxGrip | TR | EXO | 60 TPI, Redesigned, wider shoulder knobs for better cornering, Paddle-like center knobs for improved braking, Width: 2.4 inches
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
400,0
|
400,0
|
450,0
|
450,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
562,0
|
586,0
|
611,0
|
635,0
|
|
d
Head tube length
|
110,0
|
120,0
|
130,0
|
140,0
|
|
e
Head tube angle
|
63,0º
|
63,0º
|
63,0º
|
63,0º
|
|
f
Rake
|
49,0
|
50,0
|
49,0
|
50,0
|
|
g
Trail
|
126,0
|
125,0
|
126,0
|
125,0
|
|
h
Wheelbase
|
1207,0
|
1232,0
|
1256,0
|
1281,0
|
|
i
Chainstay length
|
430,0
|
430,0
|
430,0
|
430,0
|
|
j
Bottom bracket drop
|
6,0
|
6,0
|
6,0
|
6,0
|
|
k
Stack height
|
599,0
|
607,0
|
616,0
|
625,0
|
|
l
Reach
|
420,0
|
440,0
|
460,0
|
480,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
349,0
|
349,0
|
349,0
|
349,0
|
|
y
Front center
|
777,0
|
802,0
|
826,0
|
851,0
|
