Canyon Sender CF 9.0 Team 2019

MTB Downhill
Groupset
SRAM X01
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
200mm
Rear travel
200mm

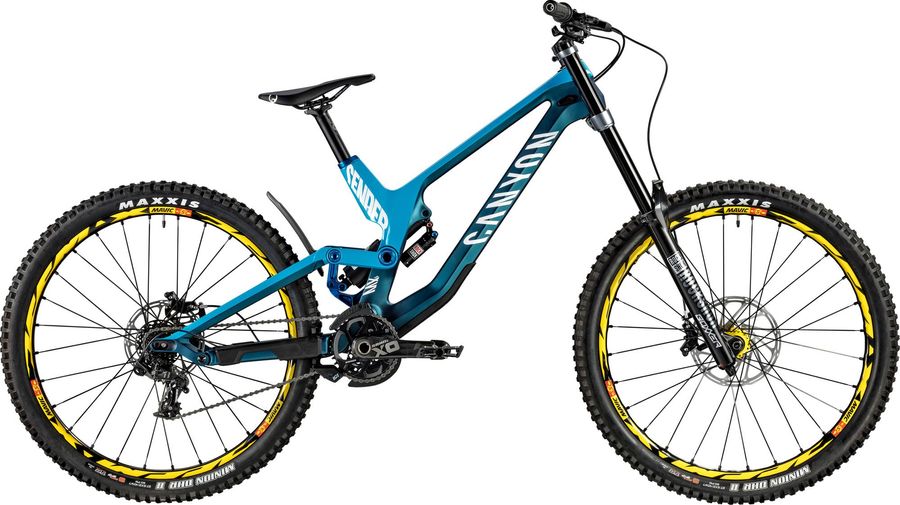

Canyon Sender CF 9.0 Team 2019

About the Canyon Sender CF 9.0 Team 2019

The Canyon Sender CF 9.0 Team 2019 is a Full suspension Downhill Mountain Bike with a carbon frame. Equipped with a SRAM X01 drivetrain of 7 gears (1x7). Its features include boost 110 e hydraulic disc brakes.

Features

The Canyon Sender CF 9.0 Team 2019 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GD10
Pedals
None included
Components
Steam
Canyon V22
Saddle
Ergon SMD20
Headset
Acros AZX-227
Seatpost
Canyon G5
Handlebar
Canyon H24 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM XO1 DH XSYNC 36T 36
Shifter
SRAM X01 DH Trigger 7s
Bottom bracket
SRAM BSA GXP
Cassette
SRAM XG-795 7s 136 g
Cog finish cassete
Black
Cog sizes
10-24t:10,12,14,16,18,21,24
Gearing
10-24t
Model
CS-XG-795-A1
Name
XG-795 MINI BLOCK™ Cassette
Speed
7s
Technology cassete
XG
Weight
136
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Rear derailleur
SRAM X01 DH 10s, 7s
Cable pull ratio
Exact actuation
Cage
Medium, Short
Cage material
Aluminum
Color
Black, Red
Max tooth
26, 28
Model
RD-X0-1DH-A2
Name
X01 DH X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
10s, 7s
Frameset
Frame
Canyon Sender CF, Material: Carbon, Travel: 200 mm, Axle Dimension: 12 x 157 mm, Brake Mount: Post Mount 180
Rear suspension
RockShox Vivid R2C 468 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
200x57, 216x63, 222x70, 240x76, 267x89
Model
RS-VIVC-R2C-B3
Name
Vivid R2C
Shaft eyelet
Standard
Weight based on
216x63, no coil, no hardware
Weight
468
Front suspension
RockShox Boxxer World Cup Solo Air
Color
Diffusion Black, Gloss Black, Gloss White
fork offset
42mm, 48mm
Maximum rotor size
210mm
Minimum rotor size
160mm, 200mm
Model
FS-BXR-WC-B2
Name
BoXXer World Cup
Spring
Solo Air
Travel (mm)
200mm
Upper tube type
35mm tapered aluminum
Wheel size
26", 27.5"
Wheels
Rims
Mavic Deemax DH XD, Rim Material: Aluminium, Inner Width: 28 mm, Weight: 1160 g
Tires
MAXXIS Minion DHR II 2.4'', Compound: 3C Maxx Grip

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
400,0
450,0
450,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
562,0
586,0
611,0
635,0
d
Head tube length
110,0
120,0
130,0
140,0
e
Head tube angle
63,0º
63,0º
63,0º
63,0º
f
Rake
49,0
50,0
49,0
50,0
g
Trail
126,0
125,0
126,0
125,0
h
Wheelbase
1207,0
1232,0
1256,0
1281,0
i
Chainstay length
430,0
430,0
430,0
430,0
j
Bottom bracket drop
6,0
6,0
6,0
6,0
k
Stack height
599,0
607,0
616,0
625,0
l
Reach
420,0
440,0
460,0
480,0
m
Standover height
735,0
740,0
743,0
747,0
x
Bottom bracket height
349,0
349,0
349,0
349,0
y
Front center
777,0
802,0
826,0
851,0
