Canyon Spectral 27.5 CF 8 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,84 kg
Front travel
160mm
Rear travel
150mm

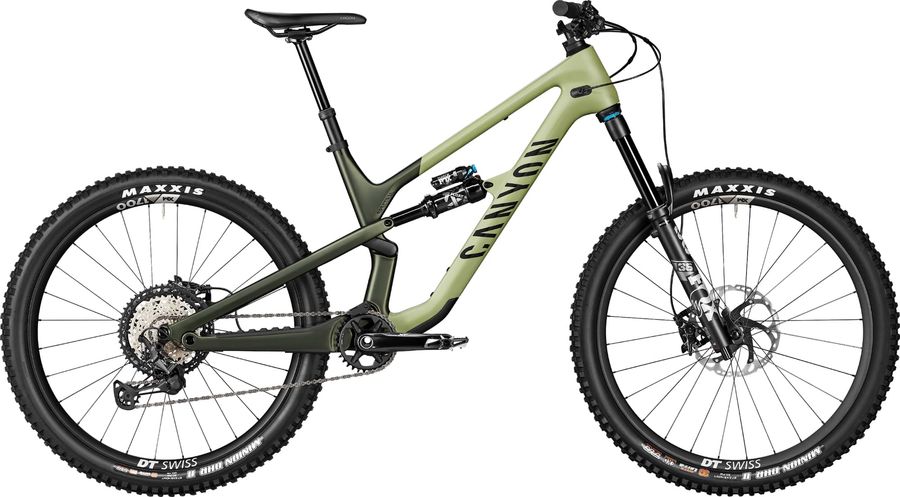

Canyon Spectral 27.5 CF 8 2022

About the Canyon Spectral 27.5 CF 8 2022

The Canyon Spectral 27.5 CF 8 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,84 kg.

Features

The Canyon Spectral 27.5 CF 8 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Grips, Canyon G5 lock-on grips for huge grip and control.
Pedals
None included
Components
Steam
Canyon G5 Stem
Saddle
Ergon SM10 Enduro Comp
Seatpost
G5 Adjustable Dropper Post
Handlebar
Canyon G5 Carbon Riser Bar, Highly robust carbon handlebar. G5 stands for gravity and category 5., Rise: 30 mm., Clamping diameter: 31.8 mm.
Discs
Shimano RT86, 203mm, A big (203mm) Shimano RT86 brake rotor delivers equally big stopping power.
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano XT M8120 32T
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Frameset
Frame
Canyon Spectral CF
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float Performance Elite
Wheels
Rims
DT Swiss XM1700 | DT SWISS XM1700
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready | Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x27,5"

Geometry

Size XS SM MD LG
a
Seat tube length
395,0
395,0
430,0
460,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
548,0
577,0
605,0
632,0
d
Head tube length
105,0
125,0
135,0
145,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
36,0
37,0
36,0
36,0
g
Trail
133,0
132,0
133,0
133,0
h
Wheelbase
1158,0
1192,0
1221,0
1250,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
591,0
609,0
618,0
627,0
l
Reach
405,0
430,0
455,0
480,0
m
Standover height
741,0
746,0
753,0
756,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
732,0
766,0
795,0
824,0
