BikeWise

Canyon Spectral 27.5 CF 9 2022

MTB Enduro
Groupset
SRAM GX Eagle AXS
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
160mm
Rear travel
150mm

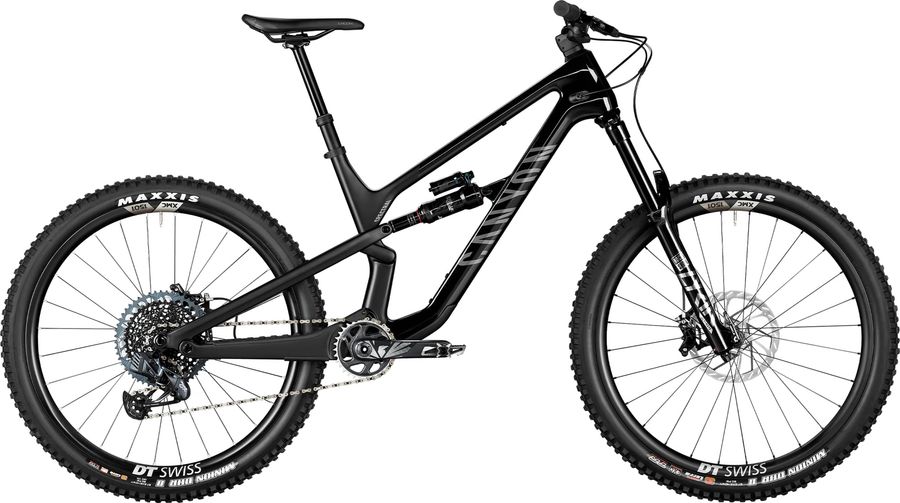

Canyon Spectral 27.5 CF 9 2022

About the Canyon Spectral 27.5 CF 9 2022

The Canyon Spectral 27.5 CF 9 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle AXS drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,6 kg.

Features

The Canyon Spectral 27.5 CF 9 2022 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Grips, Canyon G5 lock-on grips for huge grip and control.
Pedals
None included
Components
Saddle
Ergon SM10 Enduro Comp
Seatpost
G5 Adjustable Dropper Post
Discs
SRAM HS2 200 mm
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X1 Eagle Carbon, 32T, SRAM X01 Eagle crankset with 32-tooth chainring and 170mm crankarms for plenty of pedaling clearance.
Shifter
SRAM GX Eagle AXS Contoller
Bottom bracket
SRAM DUB, Threaded, Hassle-free SRAM DUB threaded bottom bracket.
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle AXS
Cassette
SRAM GX Eagle
Frameset
Frame
Canyon Spectral CF
Front suspension
RockShox Lyrik Ultimate RC2
Rear suspension
RockShox Super Deluxe Ultimate 453 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55, 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5, 205x57.5(TR), 205x60, 205x60(TR), 205x62.5(TR), 205x65, 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
268, 320, 380
Model
RS-SDLX-ULT-B2
Name
Super Deluxe Ultimate
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
453
Wheels
Rims
DT SWISS XMC1501
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready | Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x27,5"

Geometry

Size XS SM MD LG
a
Seat tube length
395,0
395,0
430,0
460,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
548,0
577,0
605,0
632,0
d
Head tube length
105,0
125,0
135,0
145,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
36,0
37,0
36,0
37,0
g
Trail
133,0
132,0
133,0
132,0
h
Wheelbase
1158,0
1192,0
1221,0
1246,0
i
Chainstay length
427,0
427,0
427,0
432,0
j
Bottom bracket drop
20,0
20,0
20,0
36,0
k
Stack height
591,0
609,0
618,0
624,0
l
Reach
405,0
430,0
455,0
480,0
m
Standover height
741,0
746,0
753,0
756,0
x
Bottom bracket height
335,0
335,0
335,0
319,0
y
Front center
732,0
766,0
795,0
816,0
