Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
14,44 kg
Front travel
160mm
Rear travel
150mm

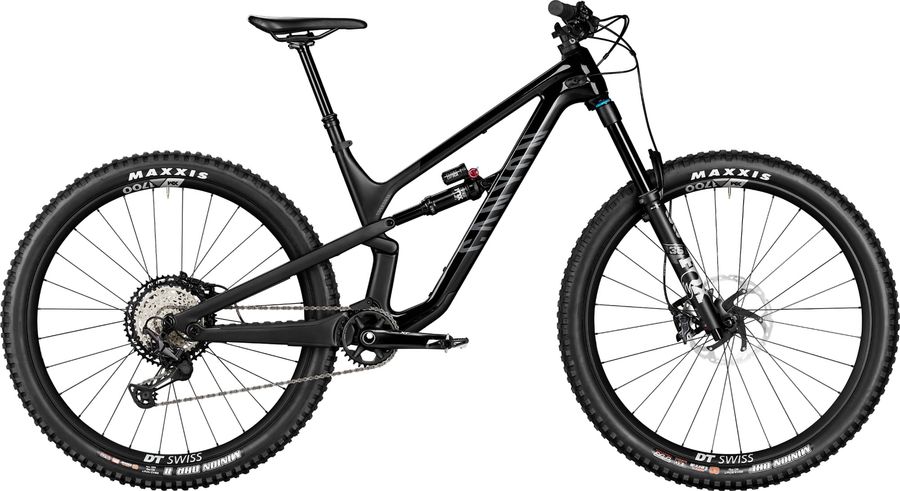

About the Canyon Spectral 29 CF 8 2022
The Canyon Spectral 29 CF 8 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,44 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem 40mm
|
|---|---|
|
Saddle
|
Fizik Terra Alpaca X5
|
|
Seatpost
|
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
|
|
Handlebar
|
Canyon G5 Riser Bar
|
|
Discs
|
Shimano RT86, 180mm, 180mm Shimano RT86 rotor provides a good balance of stopping power and modulation. | Shimano RT86, 203mm, A big (203mm) Shimano RT86 brake rotor delivers equally big stopping power.
|
|
Brakes
|
Shimano Deore XT BR-M8000
403 (BL-M8000) g
Hydraulic disc brake
2 piston
|
|
G03A Resin J03A Resin BL-T8000 SM-RT86 |
|
|
Crankset
|
Shimano XT, 32T, Shimano XT crankset sports a 32-tooth chainring and 170mm crankarms for optimal pedaling clearance.
|
|---|---|
|
Shifter
|
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
|
|
Bottom bracket
|
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Cassette
|
Shimano Deore XT CS-M8100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 470g |
|
|
Chain
|
Shimano CN-M7100
252 g
|
|
|
|
|
Frame
|
Canyon Spectral CF 29, Lightweight (just 2,598 grams) and strong, the full-carbon frame also features a long reach, slack head angle, and steep seat angle—geometry that makes it faster both up and down the mountain.
|
|---|---|
|
Front suspension
|
Fox 36 Float Performance Elite
|
|
Rear suspension
|
Fox DPX2 Performance Elite
|
|
Rims
|
DT Swiss XM1700 29" | DT Swiss XM1700 29", DT Swiss' XM1700 wheelset is plenty strong. Features include wide (30mm) aluminum rims and DT's Ratchet-drive, Boost hubs.
|
|---|---|
|
Tires
|
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control.
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
430,0
|
460,0
|
490,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
577,0
|
604,0
|
631,0
|
658,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
|
f
Rake
|
44,0
|
43,0
|
43,0
|
44,0
|
|
g
Trail
|
130,0
|
131,0
|
131,0
|
130,0
|
|
h
Wheelbase
|
1188,0
|
1217,0
|
1246,0
|
1276,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
36,0
|
36,0
|
36,0
|
36,0
|
|
k
Stack height
|
606,0
|
615,0
|
624,0
|
633,0
|
|
l
Reach
|
430,0
|
455,0
|
480,0
|
505,0
|
|
m
Standover height
|
746,0
|
753,0
|
758,0
|
770,0
|
|
x
Bottom bracket height
|
338,0
|
338,0
|
338,0
|
338,0
|
|
y
Front center
|
758,0
|
787,0
|
816,0
|
846,0
|
