Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Weight
13,24 kg
Front travel
160mm
Rear travel
150mm

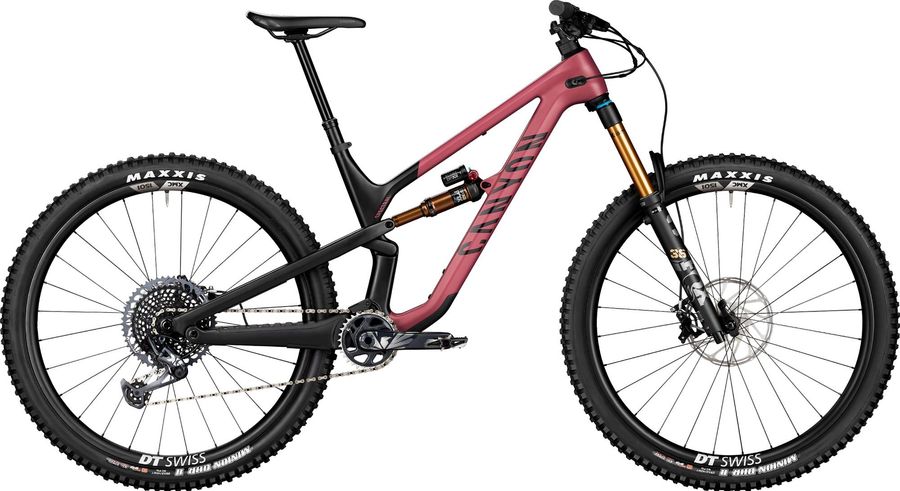

About the Canyon Spectral 29 CF 9 2021
The Canyon Spectral 29 CF 9 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,24 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Canyon G5 Grips, Canyon's G5 Lock-On grips are comfortable and secure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Canyon G5 Stem 40mm, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
|
|---|---|
|
Saddle
|
Ergon SM10 Enduro Comp
|
|
Seatpost
|
OneUp Components V2, OneUp Components' V2 dropper post provides a massive 180mm of saddle-height adjustability., S: 150 mm, M - XL: 180 mm
|
|
Handlebar
|
Canyon G5 Carbon Riser Bar, Our carbon-fiber G5 Riser bar offers the perfect combination of width (780mm) and rise (30mm).
|
|
Discs
|
SRAM Centerline, 180mm, 160mm SRAM Centerline rear rotor offers excellent braking control. | SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
|
|
Brakes
|
SRAM G2 RSC
Hydraulic
248 g
|
|
|
|
|
Crankset
|
SRAM X1 Eagle Carbon, 32T, SRAM X01 Eagle crankset with 32-tooth chainring and 170mm crankarms for plenty of pedaling clearance.
|
|---|---|
|
Shifter
|
SRAM X01 Eagle, 12-speed, Aimed at aggressive trail riders, Eagle X01 pairs premium materials and design for years of accurate shifts under pressure.
|
|
Bottom bracket
|
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1299 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM X01 Eagle
12s
|
|
|
|
|
Frame
|
Canyon Spectral CF 29
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Factory
|
|
Front suspension
|
Fox 36 Factory
|
|
Rims
|
DT Swiss XMC 1501 Carbon, Ultralight and strong, DT Swiss carbon XMC 1501 wheelset features wide (30mm) carbon rims and classic DT 240 ratchet-drive hubs. | DT Swiss XMC1501 29", Ultralight and strong, DT's carbon XMC 1501 wheelset features wide (30mm) carbon rims and classic DT 240 ratchet-drive hubs.
|
|---|---|
|
Tires
|
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | MAXXIS Minion DHR II 2.4'', MAXXIS DHRII 2.4" rear tire provides outstanding grip and braking control.
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
395,0
|
430,0
|
460,0
|
490,0
|
|
b
Seat tube angle
|
76,5º
|
76,5º
|
76,5º
|
76,5º
|
|
c
Top tube length
|
577,0
|
604,0
|
631,0
|
658,0
|
|
d
Head tube length
|
95,0
|
105,0
|
115,0
|
125,0
|
|
e
Head tube angle
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
|
f
Rake
|
44,0
|
43,0
|
43,0
|
44,0
|
|
g
Trail
|
130,0
|
131,0
|
131,0
|
130,0
|
|
h
Wheelbase
|
1188,0
|
1217,0
|
1246,0
|
1276,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
36,0
|
36,0
|
36,0
|
36,0
|
|
k
Stack height
|
606,0
|
615,0
|
624,0
|
633,0
|
|
l
Reach
|
430,0
|
455,0
|
480,0
|
505,0
|
|
m
Standover height
|
1065,0
|
1072,0
|
1077,0
|
1089,0
|
|
x
Bottom bracket height
|
338,0
|
338,0
|
338,0
|
338,0
|
|
y
Front center
|
758,0
|
787,0
|
816,0
|
846,0
|
