BikeWise

Canyon Spectral AL 5.0 2019

MTB Enduro
Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
160mm
Rear travel
150mm

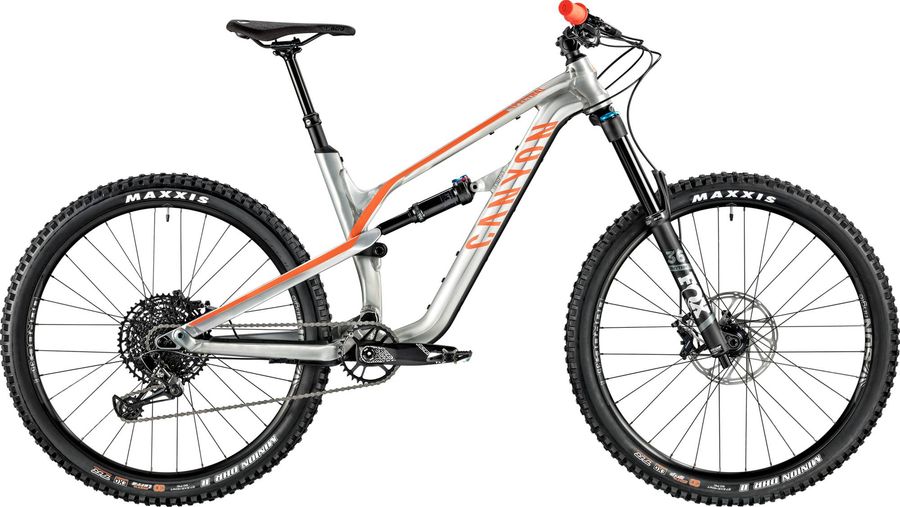

Canyon Spectral AL 5.0 2019

About the Canyon Spectral AL 5.0 2019

The Canyon Spectral AL 5.0 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Spectral AL 5.0 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Race Face Aeffect
Saddle
SDG Fly MTN
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K DUB 32T 32
Shifter
SRAM NX Eagle Trigger 12s, Clamp: MMX
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Spectral AL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Sun Ringle Duroc SH11, Rim Material: Aluminium, Inner Width: 35 mm, Weight: 998 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready

Geometry

Size XS SM MD LG XL
a
Seat tube length
385,0
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
562,0
584,0
607,0
635,0
663,0
d
Head tube length
88,0
84,0
116,0
143,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
38,0
39,0
38,0
38,0
g
Trail
116,0
117,0
116,0
117,0
117,0
h
Wheelbase
1124,0
1141,0
1174,0
1206,0
1237,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
27,0
27,0
22,0
22,0
22,0
k
Stack height
590,0
590,0
607,0
636,0
657,0
l
Reach
402,0
421,0
442,0
462,0
484,0
m
Standover height
737,0
744,0
765,0
785,0
799,0
x
Bottom bracket height
328,0
328,0
333,0
333,0
333,0
y
Front center
693,0
710,0
743,0
775,0
806,0
