Canyon Spectral AL 6.0 2018

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
150mm
Rear travel
140mm

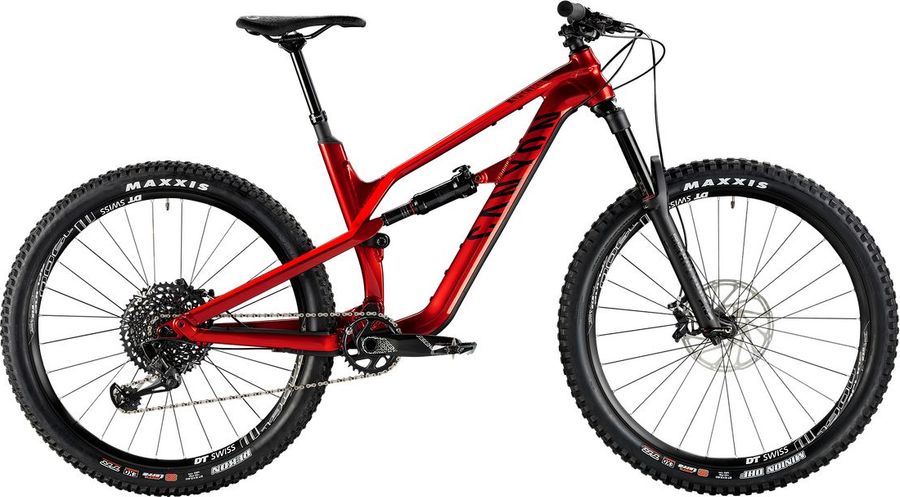

Canyon Spectral AL 6.0 2018

About the Canyon Spectral AL 6.0 2018

The Canyon Spectral AL 6.0 2018 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,5 kg.

Features

The Canyon Spectral AL 6.0 2018 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5
Pedals
none included
Components
Steam
Race Face Ride, RISE: + or - 6° (reversible), BAR DIAMETER: 35 mm, STACK HEIGHT: 40 mm, 7050 aluminium
Saddle
SDG FLY MTN
Headset
Canyon | Acros
Seatpost
Kind Shock LEV SI
Handlebar
Race Face Ride, Made of cold-drawn, seamless 6061 aluminium, Developed for optimum stiffness to weight ratio, Broad design and newly designed shape for greater control and increased stiffness, Width: 780 mm, Rise: 10mm (XS), 20mm (S,M)
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Truvativ Descendant 6K Eagle 30Z
Shifter
SRAM GX Eagle Trigger, 12s
Bottom bracket
SRAM GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Spectral AL
Rear suspension
RockShox Deluxe RT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, LC, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320
Model
RS-DLX-RT-B1
Name
Deluxe RT
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RC Solo Air 1835 g
Color
Gloss Black
fork offset
51mm
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RC-A2
Name
Pike RC
Spring
Solo Air
Travel (mm)
150mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
29" B/27.5"+
Wheels
Rims
DT Swiss M 1900 Spline
Tires
Maxxis Minion DHF, 2.6 | Maxxis Rekon+, 2.6, Maxxis Minion DHF 2.6, 3C MaxxTerra, Tubeless Ready, EXO

Geometry

Size XS SM MD LG XL
a
Seat tube length
385,0
425,0
440,0
480,0
520,0
b
Seat tube angle
74,1º
74,1º
74,1º
74,1º
74,1º
c
Top tube length
562,0
582,0
608,0
636,0
664,0
d
Head tube length
88,0
88,0
112,0
143,0
166,0
e
Head tube angle
66,1º
66,1º
66,1º
66,1º
66,1º
f
Rake
52,0
52,0
52,0
51,0
51,0
g
Trail
101,0
101,0
101,0
102,0
102,0
h
Wheelbase
1135,0
1154,0
1185,0
1217,0
1248,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
24,0
24,0
19,0
19,0
19,0
k
Stack height
593,0
593,0
610,0
639,0
660,0
l
Reach
398,0
417,0
438,0
458,0
480,0
m
Standover height
-
-
-
-
-
x
Bottom bracket height
331,0
331,0
336,0
336,0
336,0
y
Front center
704,0
723,0
754,0
786,0
817,0
