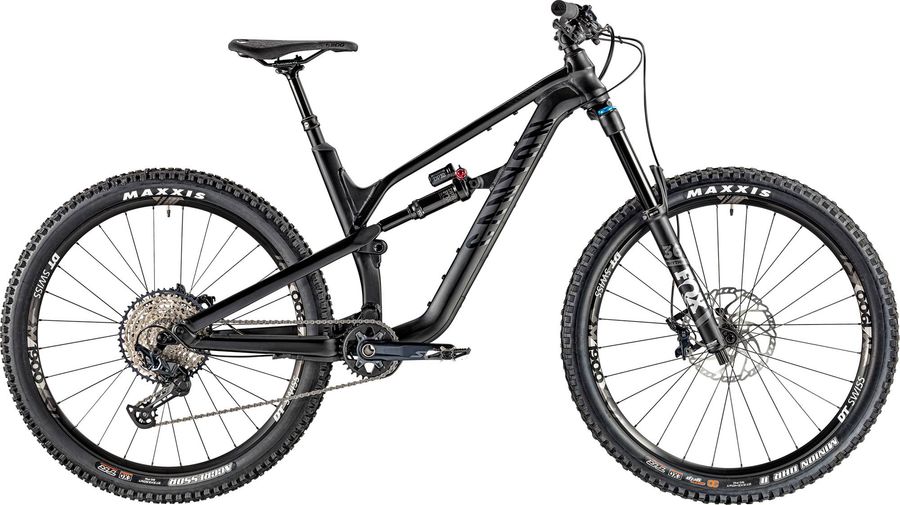

Canyon Spectral AL 6.0 2020

MTB Enduro
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,4 kg
Front travel
160mm
Rear travel
150mm
Canyon Spectral AL 6.0 2020

About the Canyon Spectral AL 6.0 2020

The Canyon Spectral AL 6.0 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 14,4 kg.

Features

The Canyon Spectral AL 6.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Race Face Aeffect
Saddle
SDG Fly MTN
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT66, Disc Mount: 6-Hole
Brakes
Shimano SLX BR-M7120 444 (BL-M7100) g Hydraulic disc brake 4 piston
Average weight (g)
444 (BL-M7100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M7120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D02S Metal (w/o fin)
Pad option
N04C Metal (w/ fin)
Pad standard
D03S Resin (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano SLX M7100 32T 32
Shifter
Shimano SLX M7100 12s, Clamp: I-Spec EV
Bottom bracket
Shimano Pressfit BB-MT500
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Spectral AL, Material: Aluminium 6061, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Rhythm
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
DT Swiss M 1900 SH12, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: Pawl
Tires
"MAXXIS Aggressor 2.5"""

Geometry

Size XS SM MD LG XL
a
Seat tube length
385,0
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
74,5º
c
Top tube length
562,0
584,0
607,0
635,0
663,0
d
Head tube length
88,0
84,0
116,0
143,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
38,0
39,0
38,0
38,0
g
Trail
116,0
117,0
116,0
117,0
117,0
h
Wheelbase
1124,0
1141,0
1174,0
1206,0
1237,0
i
Chainstay length
432,0
432,0
432,0
432,0
432,0
j
Bottom bracket drop
27,0
27,0
22,0
22,0
22,0
k
Stack height
590,0
590,0
607,0
636,0
657,0
l
Reach
402,0
421,0
442,0
462,0
484,0
m
Standover height
726,0
732,0
762,0
784,0
792,0
x
Bottom bracket height
328,0
328,0
333,0
333,0
333,0
y
Front center
693,0
710,0
743,0
775,0
806,0
