Canyon Spectral CF 7.0 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
160mm
Rear travel
150mm

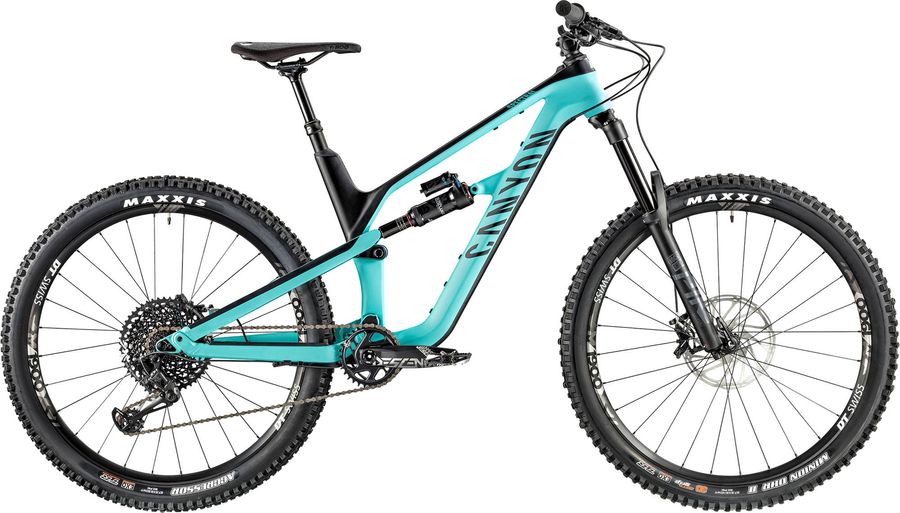

Canyon Spectral CF 7.0 2020

About the Canyon Spectral CF 7.0 2020

The Canyon Spectral CF 7.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,8 kg.

Features

The Canyon Spectral CF 7.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Race Face Aeffect
Saddle
SDG Fly MTN
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Truvativ Descendant 7K 32T 32
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Spectral CF, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Rear suspension
RockShox Super Deluxe Select+ 445 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-SELP-B2
Name
Super Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
445
Wheels
Rims
DT Swiss M 1900 XD, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: 3 Pawl, Weight: 1021 g
Tires
"MAXXIS Aggressor 2.5"""

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
570,0
596,0
624,0
652,0
d
Head tube length
92,0
116,0
147,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
39,0
38,0
38,0
g
Trail
116,0
116,0
117,0
117,0
h
Wheelbase
1132,0
1163,0
1195,0
1226,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
27,0
22,0
22,0
22,0
k
Stack height
579,0
596,0
625,0
646,0
l
Reach
410,0
431,0
451,0
473,0
m
Standover height
721,0
751,0
773,0
781,0
x
Bottom bracket height
328,0
333,0
333,0
333,0
y
Front center
712,0
743,0
775,0
806,0
