Canyon Spectral CF 7 WMN 2021

Women's Bike
MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,8 kg
Front travel
150mm
Rear travel
140mm

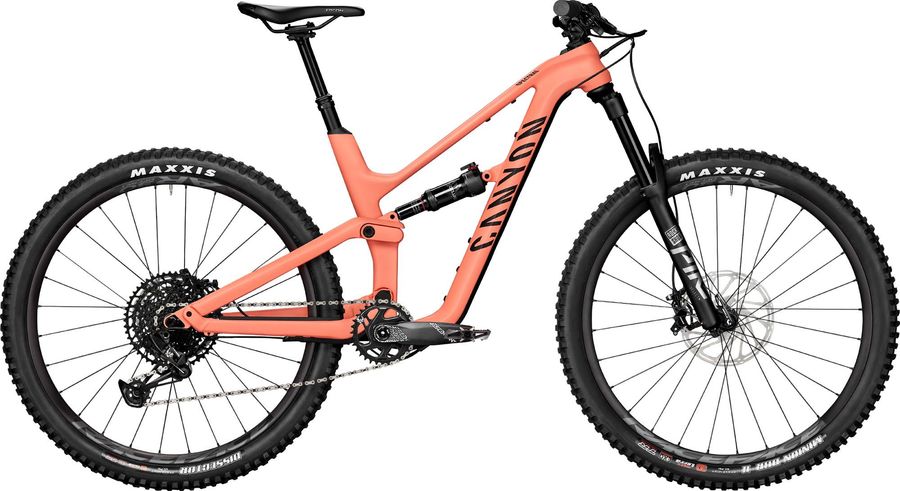

Canyon Spectral CF 7 WMN 2021

About the Canyon Spectral CF 7 WMN 2021

The Canyon Spectral CF 7 WMN 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 13,8 kg.

Features

The Canyon Spectral CF 7 WMN 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
Pedals
None included
Components
Steam
Race Face Aeffect R
Saddle
Ergon SM10 Sport Women
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare. | SRAM Centerline Rounded Edges, 180mm SRAM Centerline rear rotor offers excellent braking control.
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
Truvativ Descendant 6K AL DUB 32T
Shifter
SRAM NX Eagle Trigger 12s, SRAM's NX Eagle shifter helps deliver the simplicity and precision a wide-range, single-ring drivetrain.
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Frameset
Frame
Canyon Spectral WMN CF
Front suspension
RockShox Pike Select DebonAir 1825 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-SEL-B3
Name
Pike Select
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 120mm, Maxle Stealth
Weight
1825
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
DT Swiss M 1900 XD, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: 3 Pawl, Weight: 1021 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready | MAXXIS Dissector 2.4"

Geometry

Size XS SM MD
a
Seat tube length
385,0
425,0
440,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
554,0
571,0
599,0
d
Head tube length
85,0
84,0
109,0
e
Head tube angle
66,0º
66,0º
66,0º
f
Rake
44,0
44,0
43,0
g
Trail
110,0
110,0
111,0
h
Wheelbase
1103,0
1124,0
1162,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
22,0
23,0
19,0
k
Stack height
583,0
583,0
602,0
l
Reach
377,0
398,0
427,0
m
Standover height
715,0
720,0
744,0
x
Bottom bracket height
333,0
332,0
336,0
y
Front center
672,0
693,0
731,0
