Canyon Spectral CF 8.0 EX 2019

MTB Trail
Groupset
SRAM GX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
12,3 kg
Front travel
150mm
Rear travel
140mm

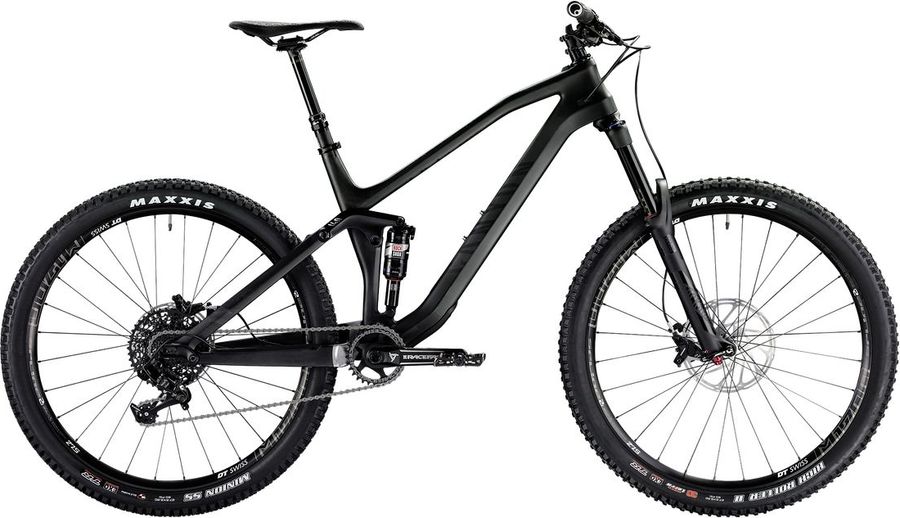

Canyon Spectral CF 8.0 EX 2019

About the Canyon Spectral CF 8.0 EX 2019

The Canyon Spectral CF 8.0 EX 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX drivetrain. Its features include dropper seatpost, hydraulic disc brakes, and tapered head tube. The bike weighs approximately 12,3 kg.

Features

The Canyon Spectral CF 8.0 EX 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Ergon GE10 Slim
Pedals
none included
Components
Steam
Renthal Apex 35, Angle: + / - 6°, 1 1/8" clamp, Stack: 40 mm, Bar clamp diameter: 35 mm
Saddle
SDG Circuit MTN, Flat construction with lightweigh EVA foam, Base cut out reduces pressure, CroMo saddle rails, Micro fibre upper, Weight: 220 g
Headset
Cane Creek 40
Seatpost
RockShox Reverb Stealth, Dropper post with infinite height adjustment, Internally routed hose for clean look, 125 mm of adjustment, Diameter: 30.9 mm
Handlebar
Renthal Fat Bar lite Alloy, Corrosion resistant hard-anodized finish, Laser etched positioning grid for easy set-up, Width marks allow accurate adjustment, Width: 760mm, Diameter: 31.8mm
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Race Face Turbine DM, CNC machined of ultra-high strength 7050 alloy crank arm
Shifter
SRAM GX, 11s, SRAM 1x™ X-ACTUATION™ for precise and reliable performance, Lever made of aluminium, Unobtrusive clamp, 11-speed
Bottom bracket
Race Face
Rear derailleur
SRAM GX 1x11 X-HORIZON Rear Derailleur 11s 265 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Black, Blue, Red
Max tooth
42
Model
RD-GX-1-A1
Name
GX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight based on
RD 1x11 Long Cage Black
Weight
265
Cassette
SRAM XG-1150 11s
Cog finish cassete
Black
Cog sizes
10-42t:10,12,14,16,18,21,24,28,32,36,42
Gearing
10-42t
Model
CS-XG-1150-A1
Name
XG-1150 FULL PIN Cassette
Speed
11s
Technology cassete
XG
Chain
SRAM PC-1110 259 g
Chain connector
PowerLock
Chain length links
114 links
Color inner link
Grey
Color outer link
Grey
Compat speed
11s
Inner link finish
Polished
Model
CN-1110-A1
Name
PC-1110 Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
259
Frameset
Frame
Canyon Spectral CF, High-strength carbon construction, 140 mm rear travel, Fully integrated cable and hydraulic line routing, Tapered Head Tube, 180 mm Post Mount standard, IPU top tube protector, Weight: 1900 g
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Monarch RT3 215 g
Body eyelet
No Bushing, Shock Block, Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 184x48, 190x51, 194x46, 197x48, 197x51, 197x54, 197x57, 200x51, 200x57, 216x63
Lockout force
219, 320, 380
Model
RS-MNR-RT3-D1
Name
Monarch RT3
Rebound tune
H, L, M
Shaft eyelet
Standard, Trek Mount
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
215
Wheels
Rims
DT Swiss M 1700 Spline Two, Straight spoke distribution, Pawl system hubs, Rim width: 30 mm
Tires
Maxxis High Roller II 2.3 | Maxxis Minion Semi Slick 2.3, TR EXO 3C MaxxTerra Rubber Compound, Folding Tyre System, Tyre Construction: 60 TPI carcass, TR bead and EXO side walls, Tubeless Ready

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
561,0
591,0
622,0
654,0
d
Head tube length
100,0
120,0
145,0
170,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1115,0
1148,0
1183,0
1217,0
i
Chainstay length
420,0
420,0
420,0
420,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
575,0
593,0
616,0
639,0
l
Reach
400,0
425,0
450,0
475,0
m
Standover height
770,0
778,0
790,0
811,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
-
-
-
-
