Canyon Spectral CF 8 2021

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,16 kg
Front travel
160mm
Rear travel
150mm

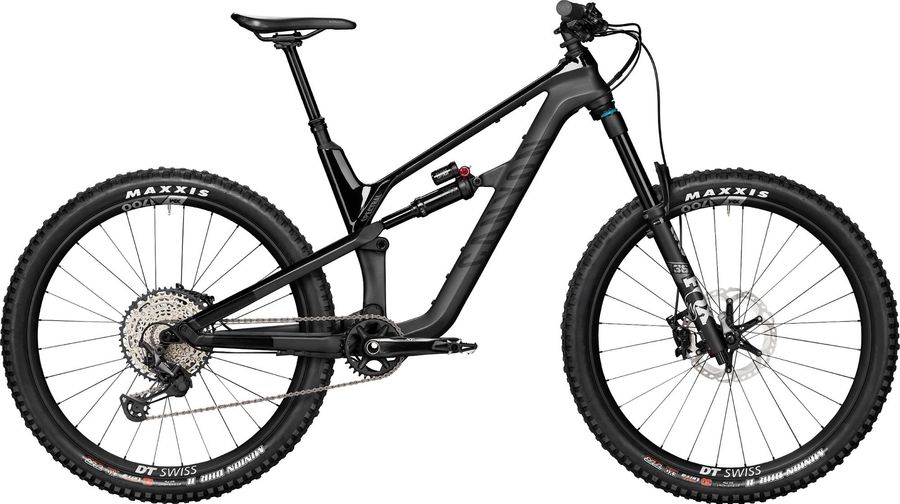

Canyon Spectral CF 8 2021

About the Canyon Spectral CF 8 2021

The Canyon Spectral CF 8 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, hydraulic disc brakes, and tubeless ready. The bike weighs approximately 14,16 kg.

Features

The Canyon Spectral CF 8 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Lock-On, Canyon's G5 Lock-On grips are comfortable and secure.
Pedals
None included
Components
Steam
Canyon G5
Saddle
Ergon SM10 Enduro Comp
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon G5 Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano XT brake rotor, 203mm, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal | Shimano RT-MT800
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano Deore XT M8100 32T
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano Pressfit BB71
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M8100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M8100
Pin link plate
Gray
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Spectral CF
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
DT Swiss XM 1700 S12 | DT Swiss XM 1700
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
480,0
520,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
574,0
600,0
628,0
656,0
d
Head tube length
92,0
116,0
147,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
45,0
44,0
44,0
44,0
g
Trail
109,0
110,0
110,0
110,0
h
Wheelbase
1136,0
1166,0
1199,0
1230,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
24,0
19,0
19,0
19,0
k
Stack height
582,0
600,0
628,0
649,0
l
Reach
405,0
426,0
446,0
468,0
m
Standover height
721,0
751,0
773,0
781,0
x
Bottom bracket height
331,0
336,0
336,0
336,0
y
Front center
716,0
746,0
779,0
810,0
