Canyon Spectral CF 9.0 2019

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,6 kg
Front travel
160mm
Rear travel
150mm

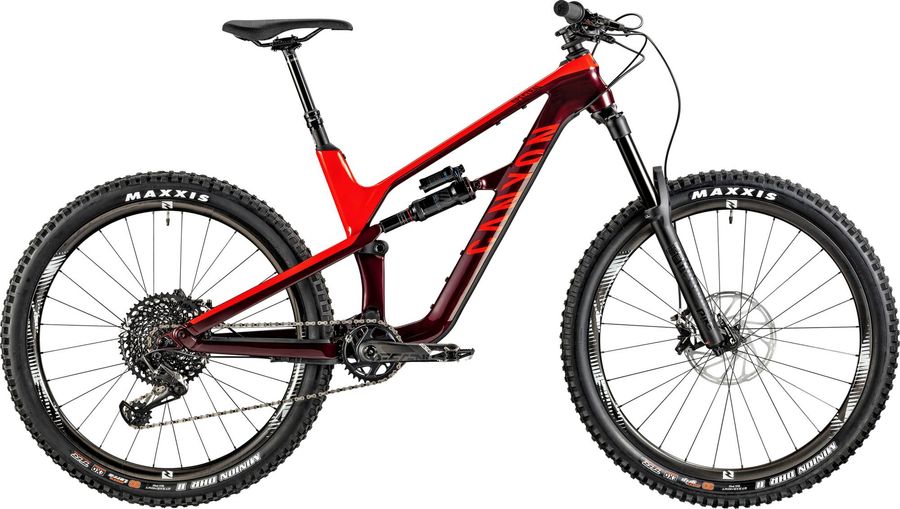

Canyon Spectral CF 9.0 2019

About the Canyon Spectral CF 9.0 2019

The Canyon Spectral CF 9.0 2019 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,6 kg.

Features

The Canyon Spectral CF 9.0 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Headset
Canyon | Acros
Seatpost
RockShox Reverb Stealth 1X
Handlebar
Canyon G5 Carbon Riserbar, Material: Carbon, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM Guide RSC Hydraulic 377 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Silver
Model
DB-GDE-RSC-B1
Name
Guide RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
377
Drivetrain
Crankset
Truvativ Descendant Carbon DUB 32T 32
Shifter
SRAM X01 Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Spectral CF, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe RCT
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L1, M
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RCT-B1
Name
Super Deluxe RCT
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Wheels
Rims
Reynolds TR 307 XD, Rim Material: Carbon, Inner Width: 30 mm, Weight: 1108 g
Tires
MAXXIS Minion DHR II 2.4'', Casing: Exo, Compound: 3C Maxx Terra, Technology: Tubeless ready

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
570,0
596,0
624,0
652,0
d
Head tube length
92,0
116,0
147,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
39,0
38,0
38,0
g
Trail
116,0
116,0
117,0
117,0
h
Wheelbase
1132,0
1163,0
1195,0
1226,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
27,0
22,0
22,0
22,0
k
Stack height
579,0
596,0
625,0
646,0
l
Reach
410,0
431,0
451,0
473,0
m
Standover height
733,0
754,0
774,0
788,0
x
Bottom bracket height
328,0
333,0
333,0
333,0
y
Front center
712,0
743,0
775,0
806,0
