Canyon Spectral CF 9.0 2020

MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,3 kg
Front travel
160mm
Rear travel
150mm

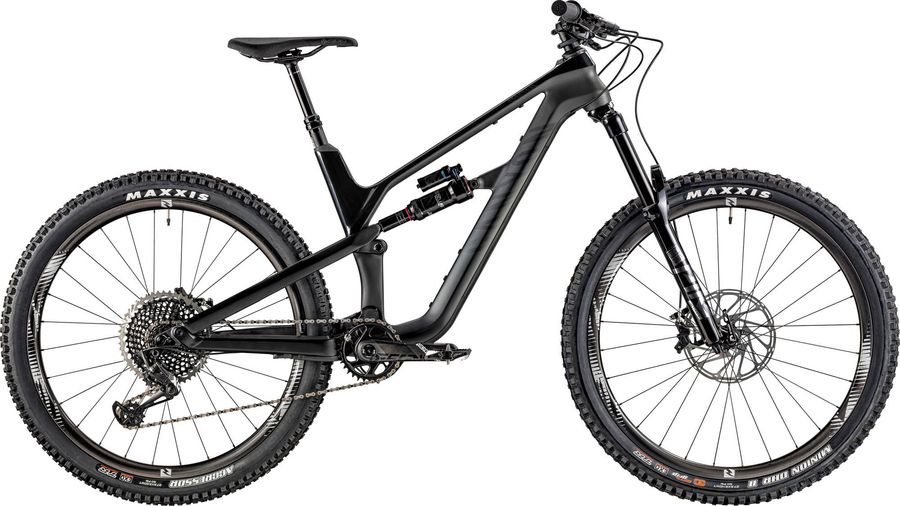

Canyon Spectral CF 9.0 2020

About the Canyon Spectral CF 9.0 2020

The Canyon Spectral CF 9.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,3 kg.

Features

The Canyon Spectral CF 9.0 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Flange
Pedals
None included
Components
Steam
Canyon G5
Saddle
SDG Radar
Seatpost
RockShox Reverb Stealth 1X
Handlebar
HB G5 HB0055-01 CF 31.8 Rise 20 760 bk
Discs
SRAM Centerline Rounded Edges, Disc Mount: Centerlock
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
Truvativ Descendant Carbon DUB 32T, S: 170mm crank, M-XL: 175mm crank 32
Shifter
SRAM X01 Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1295 Eagle 12s 350 g
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1295-B1
Name
XG-1295 Eagle Cassette
Speed
12s
Technology cassete
XG
Weight
350
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Spectral CF, Material: Carbon, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
RockShox Deluxe Ultimate 340 g
Body eyelet
Bearing, No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RCT
Eye to eye stroke
165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-ULT-B2
Name
Deluxe Ultimate
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Front suspension
RockShox Pike Ultimate DebonAir
Color
Gloss Black, Gloss Black W/Copper Decal, Gloss Black W/Rainbow Decal, Gloss Silver
Damper type
Charger 2.1 RC2, Charger 2.1 RCT3
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-PIKE-ULT-B4
Name
Pike Ultimate
Spring
DebonAir
Travel (mm)
120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Reynolds TR 307 XD, Rim Material: Carbon, Inner Width: 30 mm, Weight: 1108 g
Tires
"MAXXIS Aggressor 2.5"""

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
570,0
596,0
624,0
652,0
d
Head tube length
92,0
116,0
147,0
170,0
e
Head tube angle
66,0º
66,0º
66,0º
66,0º
f
Rake
39,0
39,0
38,0
38,0
g
Trail
116,0
116,0
117,0
117,0
h
Wheelbase
1132,0
1163,0
1195,0
1226,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
27,0
22,0
22,0
22,0
k
Stack height
579,0
596,0
625,0
646,0
l
Reach
410,0
431,0
451,0
473,0
m
Standover height
721,0
751,0
773,0
781,0
x
Bottom bracket height
328,0
333,0
333,0
333,0
y
Front center
712,0
743,0
775,0
806,0
