BikeWise

Canyon Spectral CF 9.0 Pro 2018

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,1 kg
Front travel
150mm
Rear travel
140mm

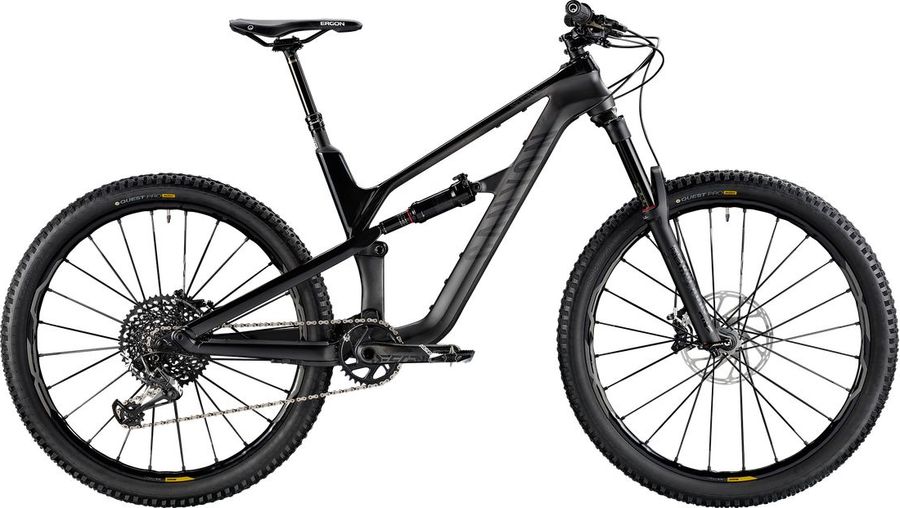

Canyon Spectral CF 9.0 Pro 2018

About the Canyon Spectral CF 9.0 Pro 2018

The Canyon Spectral CF 9.0 Pro 2018 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain. Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 13,1 kg.

Features

The Canyon Spectral CF 9.0 Pro 2018 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GD1
Pedals
none included
Components
Steam
Renthal Apex, 50mm, Angle: + / - 6°, 1 1/8” clamp, Stack: 50 mm, Handlebar clamp: 31.8 mm
Saddle
Ergon SME30, Flat rear to allow easy change of position between sitting and downhill, EVA foam with air cells for extra comfort in all positions, CroMo rails, Weight: 245 g
Headset
Cane Creek 40
Seatpost
RockShox Reverb Stealth B1, Dropper post with infinite height adjustment, Internally routed hose for clean look, 150 mm of adjustment, Framesize XS and S: 125 mm of adjustment, Diameter: 30.9 mm
Handlebar
Renthal Fat Bar lite Alloy, Corrosion resistant hard-anodized finish, Laser etched positioning grid for easy set-up, Width marks allow accurate adjustment, Width: 760mm, Diameter: 35mm
Brakes
SRAM Guide RS Hydraulic 384 g
Application
MTB
Blade material
Aluminum - Forged, Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-RS-B1
Name
Guide RS
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
384
Drivetrain
Crankset
Truvativ DESCENDANT EAGLE Carbon, 12s, Carbon cranks, X-SYNC™ tooth profile for maximum chain control, Direct mount chainring, 24 mm axle
Shifter
SRAM X01 Eagle Trigger, 12s, SRAM 1X™ X-ACTUATION™ for precise and reliable 12-gear performance, Zero loss for quicker shifting procedure, Compatible with MatchMaker X, Aluminium body and adjustable lever, 12-speed
Bottom bracket
SRAM GXP
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Spectral CF
Rear suspension
RockShox Deluxe RT3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L3, L4, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380
Model
RS-DLX-RT3-B1
Name
Deluxe RT3
Rebound tune
H, L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
Mavic XA Pro
Tires
Mavic Charge Pro, 2.4 | MAVIC Quest Pro, 2.4

Geometry

Size SM MD LG XL
a
Seat tube length
425,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
570,0
596,0
624,0
652,0
d
Head tube length
92,0
116,0
147,0
170,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
45,0
45,0
44,0
44,0
g
Trail
106,0
106,0
107,0
107,0
h
Wheelbase
1132,0
1163,0
1195,0
1226,0
i
Chainstay length
421,0
421,0
421,0
421,0
j
Bottom bracket drop
27,0
22,0
22,0
22,0
k
Stack height
579,0
596,0
625,0
646,0
l
Reach
410,0
431,0
451,0
473,0
m
Standover height
733,0
754,0
774,0
788,0
x
Bottom bracket height
328,0
333,0
333,0
333,0
y
Front center
712,0
743,0
775,0
806,0
