Canyon Spectral Mullet CF 8 CLLCTV 2022

MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
15,16 kg
Front travel
160mm
Rear travel
150mm
Canyon Spectral Mullet CF 8 CLLCTV 2022

About the Canyon Spectral Mullet CF 8 CLLCTV 2022

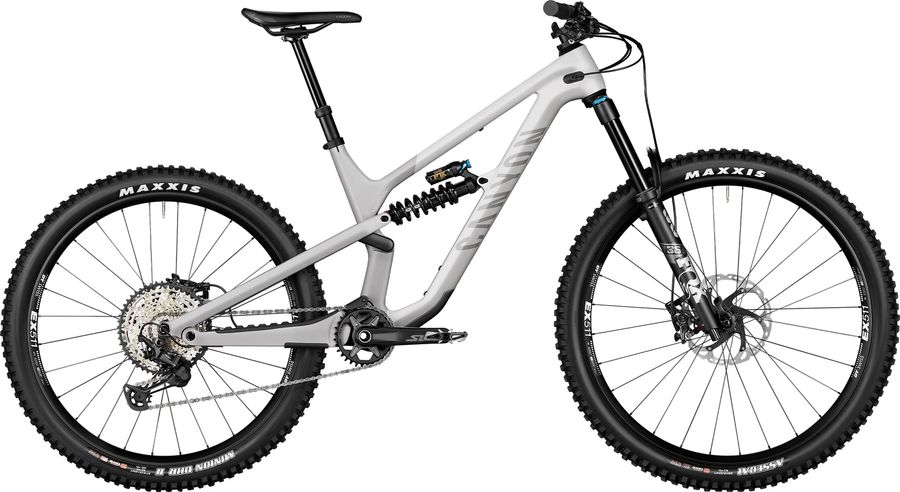

The Canyon Spectral Mullet CF 8 CLLCTV 2022 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 15,16 kg.

Features

The Canyon Spectral Mullet CF 8 CLLCTV 2022 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5 Grips, Canyon G5 lock-on grips for huge grip and control.
Pedals
None included
Components
Steam
Canyon G5 Stem
Saddle
Ergon SM10 Enduro Comp
Seatpost
G5 Adjustable Dropper Post
Handlebar
Canyon G5 Riser Bar
Discs
Shimano RT86, 203mm, A big (203mm) Shimano RT86 brake rotor delivers equally big stopping power.
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano SLX FC-M7120-1
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Bottom bracket
Shimano MT800, Threaded, Hassle-free Shimano Hollowtech II threaded bottom bracket
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Spectral CF
Front suspension
Fox 36 Float Performance Elite
Rear suspension
Fox DHX2 Factory
Wheels
Rims
DT SWISS EX511 350 | DT SWISS EX511 370LN
Tires
Maxxis Assegai 29x2,5", The Assegai brings outstanding grip and cornering control in both wet and dry conditions. | Maxxis Minion DHRII 3C MaxxTerra EXO+ 2,4x27,5"

Geometry

Size SM MD LG XL
a
Seat tube length
395,0
430,0
460,0
490,0
b
Seat tube angle
76,0º
76,0º
76,0º
76,0º
c
Top tube length
578,0
605,0
632,0
659,0
d
Head tube length
95,0
105,0
115,0
125,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
42,0
41,0
41,0
46,0
g
Trail
136,0
137,0
137,0
131,0
h
Wheelbase
1187,0
1216,0
1245,0
1280,0
i
Chainstay length
427,0
427,0
427,0
427,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
610,0
619,0
628,0
637,0
l
Reach
426,0
451,0
476,0
501,0
m
Standover height
751,0
758,0
761,0
770,0
x
Bottom bracket height
-
-
-
-
y
Front center
762,0
791,0
820,0
855,0
