Canyon Spectral WMN CF 7.0 2019

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,5 kg
Front travel
150mm
Rear travel
140mm
Canyon Spectral WMN CF 7.0 2019

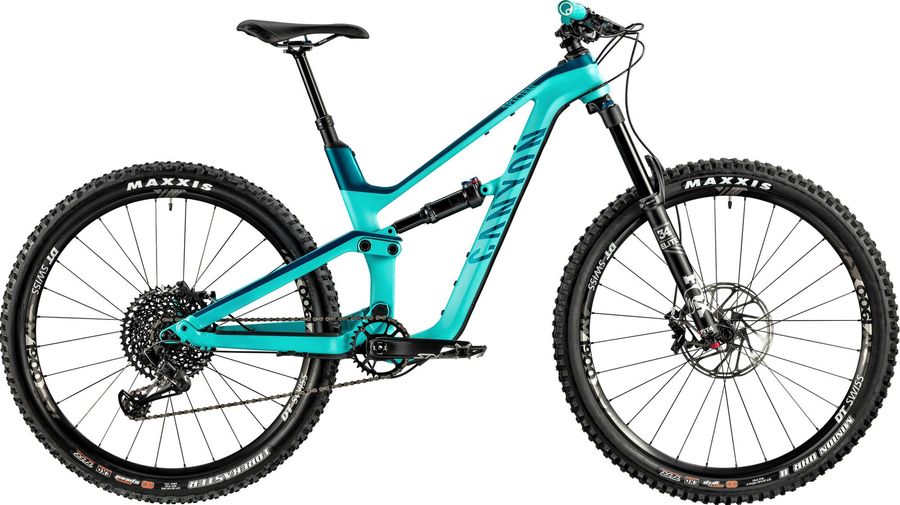

About the Canyon Spectral WMN CF 7.0 2019

The Canyon Spectral WMN CF 7.0 2019 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 13,5 kg.

Features

The Canyon Spectral WMN CF 7.0 2019 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Ergon GE1
Pedals
None included
Components
Steam
Race Face Aeffect R
Saddle
SGD Allure
Headset
Canyon | Acros
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Truvativ Stylo 6K DUB 30T 30
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Canyon Spectral WMN CF, Material: Carbon, Travel: 140 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
Fox Float DPS Performance
Front suspension
Fox 34 Performance Elite
Wheels
Rims
DT Swiss M 1900 XD, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: 3 Pawl, Weight: 1021 g
Tires
MAXXIS Forekaster 2.35'', Casing: Exo, Compound: 3C Maxx Speed

Geometry

Size XS SM MD
a
Seat tube length
385,0
425,0
440,0
b
Seat tube angle
68,9º
69,4º
70,2º
c
Top tube length
554,0
571,0
599,0
d
Head tube length
85,0
84,0
109,0
e
Head tube angle
65,9º
65,9º
65,9º
f
Rake
42,0
43,0
42,0
g
Trail
113,0
112,0
113,0
h
Wheelbase
1103,0
1124,0
1162,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
22,0
23,0
19,0
k
Stack height
583,0
583,0
602,0
l
Reach
377,0
398,0
427,0
m
Standover height
715,0
719,0
743,0
x
Bottom bracket height
333,0
332,0
336,0
y
Front center
672,0
693,0
731,0
