Canyon Spectral WMN CF 7.0 2020

Women's Bike
MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
13,75 kg
Front travel
150mm
Rear travel
140mm

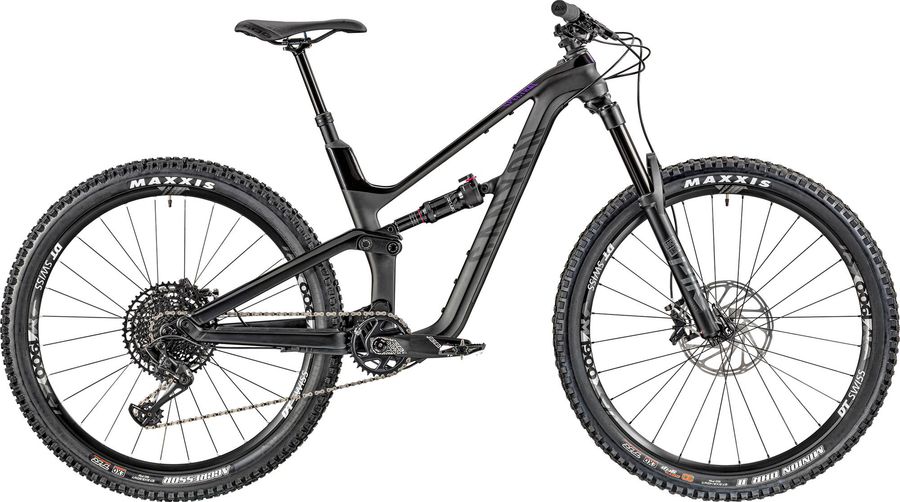

Canyon Spectral WMN CF 7.0 2020

About the Canyon Spectral WMN CF 7.0 2020

The Canyon Spectral WMN CF 7.0 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 13,75 kg.

Features

The Canyon Spectral WMN CF 7.0 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon G5
Pedals
None included
Components
Steam
Race Face Aeffect
Saddle
SGD Allure
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Drivetrain
Crankset
Truvativ Descendant 6K AL DUB 32T 32
Shifter
SRAM GX Eagle Trigger 12s
Bottom bracket
SRAM Pressfit DUB
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Frameset
Frame
Canyon Spectral WMN CF, Material: Carbon, Travel: 140 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
RockShox Pike Select RC
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
DT Swiss M1900, Rim Material: Aluminium, Inner Width: 30 mm, Freewheel: Pawl, Weight: 1083 g
Tires
"MAXXIS Aggressor 2.5"""

Geometry

Size XS SM MD
a
Seat tube length
385,0
425,0
440,0
b
Seat tube angle
73,1º
73,4º
74,0º
c
Top tube length
554,0
571,0
599,0
d
Head tube length
85,0
84,0
109,0
e
Head tube angle
65,9º
65,9º
66,0º
f
Rake
42,0
43,0
43,0
g
Trail
113,0
112,0
111,0
h
Wheelbase
1103,0
1124,0
1162,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
22,0
23,0
19,0
k
Stack height
583,0
583,0
602,0
l
Reach
377,0
398,0
427,0
m
Standover height
715,0
719,0
743,0
x
Bottom bracket height
333,0
332,0
336,0
y
Front center
672,0
693,0
731,0
