Canyon Spectral:ON 7.0 2019

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
150mm

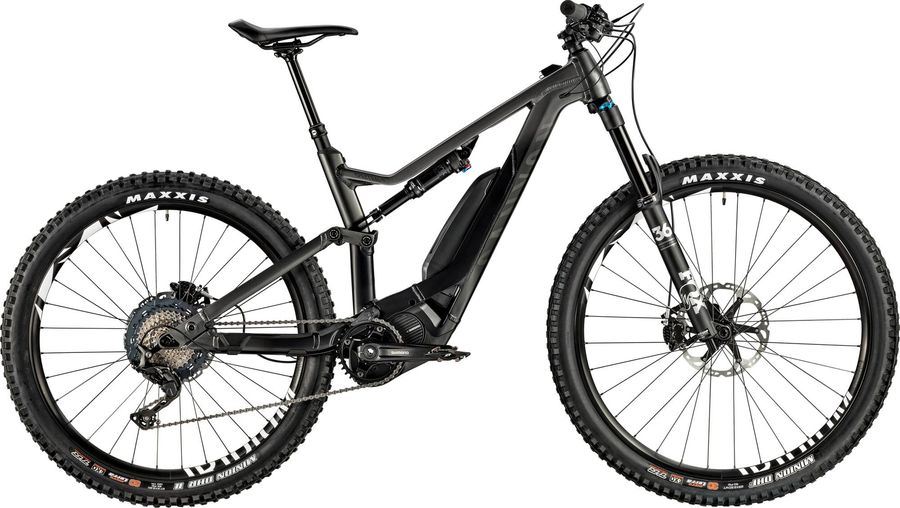

Canyon Spectral:ON 7.0 2019

About the Canyon Spectral:ON 7.0 2019

The Canyon Spectral:ON 7.0 2019 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Canyon Spectral:ON 7.0 2019 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On
Remote
Shimano Steps E7000
Components
Steam
Race Face Aeffect R
Saddle
Canyon SD:ON
Battery
Shimano Steps E8010 504 Wh
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT81, Disc Mount: Centerlock
Brakes
Shimano Deore XT BR-M8020 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBLS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8020
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
D01S Resin
D03S Resin
Pad standard
H01A Resin
H03A Resin
Pad standard
H03C Metal
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended disc brake rotor
RT-MT800
SM-RT99
RT-EM810
RT-EM910
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000
Shifter
Shimano Deore XT M8000 11s, Clamp: I-Spec II
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
Shimano CN-HG601 257 g
Average weight (g)
257
Chromizing treatment roller link pin
Model
CN-HG601-11
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG-X11
Frameset
Frame
Canyon Spectral:On, Material: Aluminium 6061, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Alexrims EM35 | Shimano Deore XT SH11, Rim Material: Aluminium, Inner Width: 35 mm, Hub Type: M8010
Tires
MAXXIS Minion DHR II 2.8'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size XS SM MD LG XL
a
Seat tube length
420,0
430,0
440,0
480,0
520,0
b
Seat tube angle
73,3º
73,8º
73,8º
73,8º
73,8º
c
Top tube length
585,0
600,0
619,0
641,0
663,0
d
Head tube length
100,0
95,0
100,0
113,0
125,0
e
Head tube angle
66,0º
66,8º
66,8º
66,8º
66,8º
f
Rake
51,0
52,0
52,0
52,0
53,0
g
Trail
102,0
96,0
96,0
96,0
95,0
h
Wheelbase
1154,0
1164,0
1186,0
1211,0
1236,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
20,0
33,0
33,0
33,0
33,0
k
Stack height
608,0
621,0
625,0
637,0
647,0
l
Reach
408,0
428,0
448,0
468,0
488,0
m
Standover height
774,0
781,0
783,0
788,0
790,0
x
Bottom bracket height
335,0
322,0
322,0
322,0
322,0
y
Front center
722,0
733,0
755,0
780,0
805,0
