BikeWise

Canyon Spectral:ON 8.0 2021

E-Bike
MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
29" / 27,5"
Suspension type
Full suspension
Weight
22,7 kg
Front travel
150mm
Rear travel
150mm

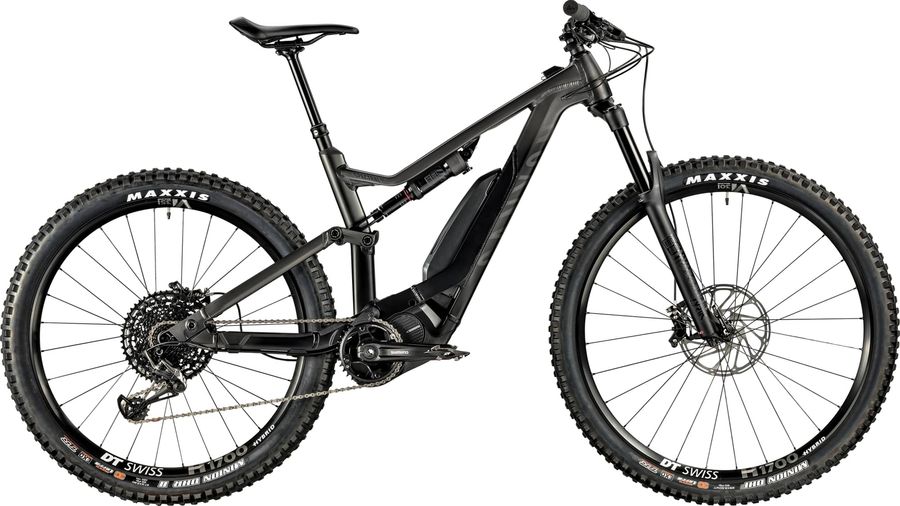

Canyon Spectral:ON 8.0 2021

About the Canyon Spectral:ON 8.0 2021

The Canyon Spectral:ON 8.0 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,7 kg.

Features

The Canyon Spectral:ON 8.0 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Remote
Shimano Steps E8000
Components
Steam
Race Face Aeffect R
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano Steps E8010 504 Wh
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
SRAM Centerline, 200mm, SRAM's 200mm Centerline front rotor ensures you always have stopping power to spare.
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000
Shifter
SRAM X01 Eagle Trigger 12s
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Canyon Spectral:On, Material: Aluminium 6061, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Rear suspension
RockShox Deluxe R
Body eyelet
Bearing, No Bushing, Standard
Compression tune
L, L3, M
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-R-B1
Name
Deluxe R
Rebound tune
L, M
Shaft eyelet
Bearing, Standard, Trunnion
Front suspension
RockShox Lyrik RC DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-RC-C2
Name
Lyrik RC
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
DT Swiss H 1700, Rim Material: Aluminium, Inner Width: 30 mm, Weight: 1027 g | DT Swiss H 1700 SH11, Rim Material: Aluminium, Inner Width: 35 mm, Freewheel: Ratchet, Weight: 1194 g
Tires
MAXXIS Minion DHR II 2.8'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready | Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design

Geometry

Size XS SM MD LG XL
a
Seat tube length
420,0
430,0
440,0
480,0
520,0
b
Seat tube angle
73,3º
73,8º
73,8º
73,8º
73,8º
c
Top tube length
585,0
600,0
619,0
641,0
663,0
d
Head tube length
100,0
95,0
100,0
113,0
125,0
e
Head tube angle
66,0º
66,8º
66,8º
66,8º
66,8º
f
Rake
51,0
52,0
52,0
52,0
53,0
g
Trail
111,0
104,0
104,0
104,0
103,0
h
Wheelbase
1154,0
1164,0
1186,0
1211,0
1236,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
20,0
33,0
33,0
33,0
33,0
k
Stack height
608,0
621,0
625,0
637,0
647,0
l
Reach
408,0
428,0
448,0
468,0
488,0
m
Standover height
774,0
781,0
783,0
788,0
790,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
722,0
733,0
755,0
780,0
805,0
