Canyon Spectral:ON AL 7.0 2020

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,27 kg
Front travel
150mm
Rear travel
150mm

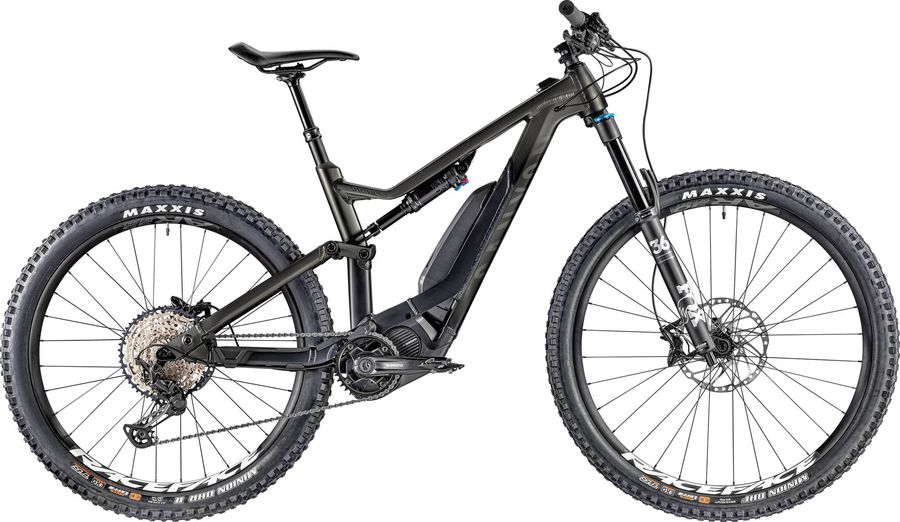

Canyon Spectral:ON AL 7.0 2020

About the Canyon Spectral:ON AL 7.0 2020

The Canyon Spectral:ON AL 7.0 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,27 kg.

Features

The Canyon Spectral:ON AL 7.0 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On
Components
Steam
Race Face Aeffect R
Saddle
Canyon SD:ON
Battery
Shimano Steps E8010 504 Wh
Seatpost
Iridium Dropper
Handlebar
Race Face Aeffect Riserbar, Material: Aluminium, Rise: 20 mm
Discs
Shimano RT64, Disc Mount: Centerlock
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000
Shifter
Shimano SLX M7100 12s
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Spectral:On, Material: Aluminium 6061, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 180
Front suspension
Fox 36 Performance
Rear suspension
Fox Float DPS Performance
Wheels
Rims
RaceFace AR35 | Shimano MT510 SH12
Tires
MAXXIS Minion DHR II 2.8'', Casing: Exo, Compound: 3C Triple, Technology: Tubeless ready

Geometry

Size XS SM MD LG XL
a
Seat tube length
420,0
430,0
440,0
480,0
520,0
b
Seat tube angle
73,3º
73,8º
73,8º
73,8º
73,8º
c
Top tube length
585,0
600,0
619,0
641,0
663,0
d
Head tube length
100,0
95,0
100,0
113,0
125,0
e
Head tube angle
66,0º
66,8º
66,8º
66,8º
66,8º
f
Rake
51,0
52,0
52,0
52,0
53,0
g
Trail
102,0
96,0
96,0
96,0
95,0
h
Wheelbase
1154,0
1164,0
1186,0
1211,0
1236,0
i
Chainstay length
433,0
433,0
433,0
433,0
433,0
j
Bottom bracket drop
20,0
33,0
33,0
33,0
33,0
k
Stack height
608,0
621,0
625,0
637,0
647,0
l
Reach
408,0
428,0
448,0
468,0
488,0
m
Standover height
774,0
781,0
783,0
788,0
790,0
x
Bottom bracket height
335,0
322,0
322,0
322,0
322,0
y
Front center
722,0
733,0
755,0
780,0
805,0
