Canyon Spectral:ON CF 7.0 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,15 kg
Front travel
150mm
Rear travel
150mm

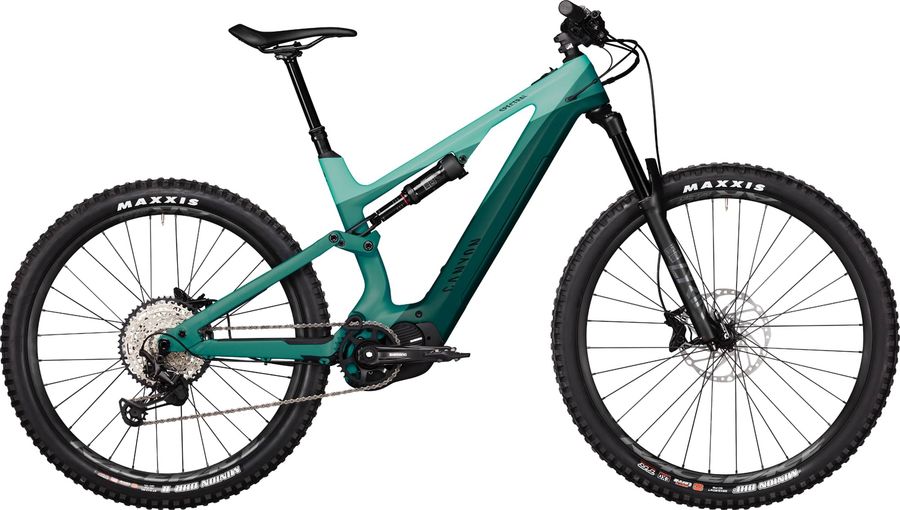

Canyon Spectral:ON CF 7.0 2021

About the Canyon Spectral:ON CF 7.0 2021

The Canyon Spectral:ON CF 7.0 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,15 kg.

Features

The Canyon Spectral:ON CF 7.0 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Remote
Shimano Steps SC-E7000 Display
Components
Steam
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Discs
Shimano RT64, Disc Mount: Centerlock
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano SLX M7100 12s
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Spectral:On, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select 313 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Model
RS-DLX-SEL-B2
Name
Deluxe Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
313
Wheels
Rims
RaceFace AR30 | Shimano MT400, Shimano MT400 front hub with Boost 110 spacing, RaceFace AR30 aluminum rim, 30mm inner rim width | RaceFace AR35 | Shimano MT510, Shimano MT510 rear hub with Boost 148 spacing, RaceFace AR35 aluminum rim, 35mm inner rim width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
586,0
608,0
628,0
649,0
d
Head tube length
100,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
52,0
56,0
55,0
55,0
g
Trail
98,0
94,0
95,0
95,0
h
Wheelbase
1167,0
1193,0
1217,0
1241,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
616,0
621,0
631,0
641,0
l
Reach
421,0
441,0
461,0
481,0
m
Standover height
780,0
784,0
788,0
802,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
738,0
764,0
788,0
812,0
