Canyon Spectral:ON CF 8.0 2021

E-Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,85 kg
Front travel
150mm
Rear travel
150mm

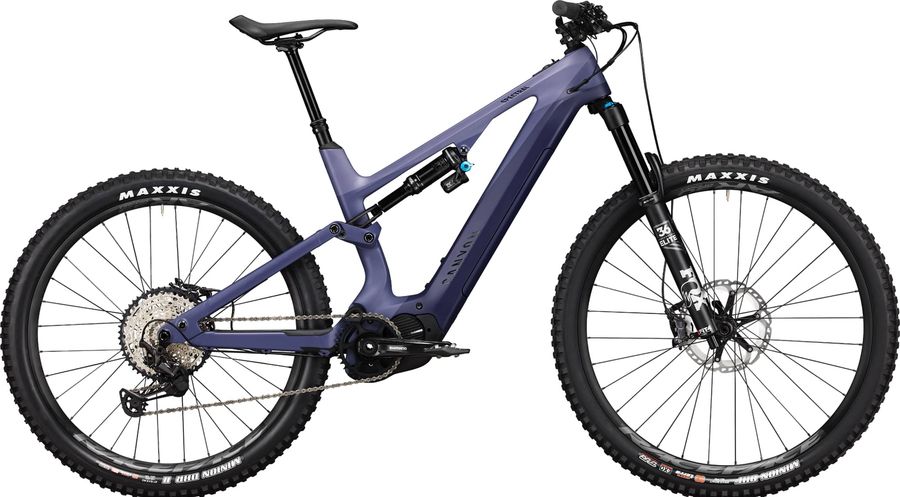

Canyon Spectral:ON CF 8.0 2021

About the Canyon Spectral:ON CF 8.0 2021

The Canyon Spectral:ON CF 8.0 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 21,85 kg.

Features

The Canyon Spectral:ON CF 8.0 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Remote
Shimano Steps E8000
Components
Steam
Canyon:ON Stem, 35mm clamp diameter, 50mm length
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano BT-E8035-L 504Wh Battery, Lithium-Ion battery, IPX5 water resistant, 2.9 Kg, Adapter for external charging not included
Seatpost
Iridium Dropper Post, Iridium dropper posts provide seat-height adjustability, varying depending on frame size. Internally routed, cable actuated, 30.9mm diameter.
Handlebar
Canyon:ON HB0056 Riser bar, Aluminum, 780mm width, 35mm clamp diameter, 20mm rise
Discs
Shimano XT STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal | Shimano XT brake rotor, 203mm, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal
Brakes
Shimano Deore XT BR-M8120 410 (BL-M8100) g Hydraulic disc brake 4 piston
Average weight (g)
410 (BL-M8100)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M8120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad option
D03S Resin (w/o fin)
Pad option
D02S Metal (w/o fin)
Pad standard
N03A Resin (w/ fin)
Pad standard
N04C Metal (w/ fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Recommended brake lever
BL-M8100
BL-T8100
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano Deore XT, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 20-degrees rotation adjustment, 130 g
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
Shimano CN-M7100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M7100
Pin link plate
Gray
Roller link plate
SIL-TEC
Type
HG 12-speed
Frameset
Frame
Canyon Spectral:On, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
RaceFace AR30 | Shimano M8110 | RaceFace AR35 | Shimano M8110
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
586,0
608,0
628,0
649,0
d
Head tube length
100,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
52,0
56,0
55,0
55,0
g
Trail
98,0
94,0
95,0
95,0
h
Wheelbase
1167,0
1193,0
1217,0
1241,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
616,0
621,0
631,0
641,0
l
Reach
421,0
441,0
461,0
481,0
m
Standover height
780,0
784,0
788,0
802,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
738,0
764,0
788,0
812,0
