Canyon Spectral:ON CF 9.0 2020

E-Bike
MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
21,35 kg
Front travel
150mm
Rear travel
150mm

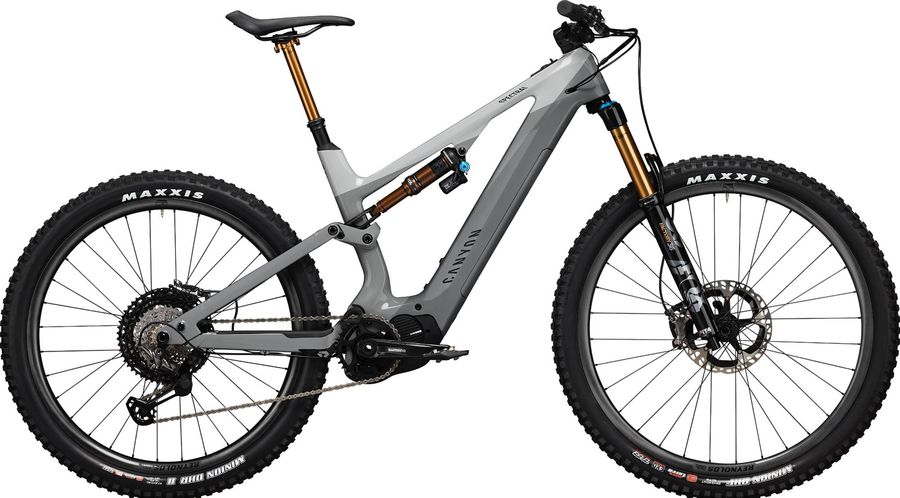

Canyon Spectral:ON CF 9.0 2020

About the Canyon Spectral:ON CF 9.0 2020

The Canyon Spectral:ON CF 9.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 21,35 kg.

Features

The Canyon Spectral:ON CF 9.0 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On
Remote
Shimano Steps E8000
Components
Saddle
Canyon SD:ON
Battery
Shimano Steps E8035 504 Wh, Capacity: 504Wh/14 Ah, IPX5 water-resistant, Voltage: 36 V, Technology: Li-Ion, Weight: 2.9 kg
Seatpost
FOX Transfer Factory
Discs
Shimano EM910
Brakes
Shimano XTR BR-M9120 385 (BL-M9120) g Hydraulic disc brake 4 piston
Average weight (g)
385 (BL-M9120)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9120
Mount type
Post-type
Oil
SHIMANO Mineral
Pad standard
N03A Resin pad (w/ radiator fin)
Pad standard
N04C Metal pad (w/ radiator fin)
Pad mount
Pad axle
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano XTR M9100 12s, Clamp: I-Spec EV
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Spectral:On, Material: Carbon (CF), Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Reynolds TR 367 E
Tires
MAXXIS Minion DHR II 2,6", Casing: Exo+

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
586,0
608,0
628,0
649,0
d
Head tube length
100,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
52,0
56,0
55,0
55,0
g
Trail
98,0
94,0
95,0
95,0
h
Wheelbase
1167,0
1193,0
1217,0
1241,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
616,0
621,0
631,0
641,0
l
Reach
421,0
441,0
461,0
481,0
m
Standover height
780,0
784,0
788,0
802,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
738,0
764,0
788,0
812,0
