Canyon Spectral:ON CF 9 2021

E-Bike
MTB Enduro
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,5 kg
Front travel
150mm
Rear travel
150mm

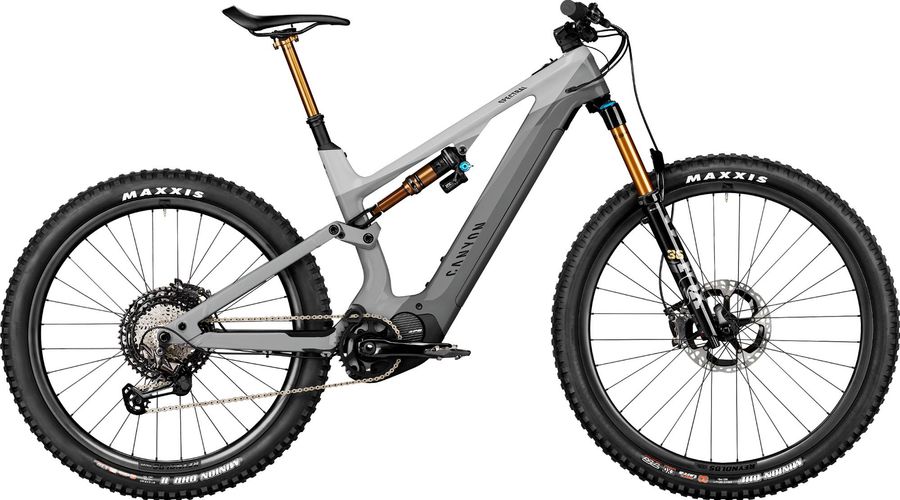

Canyon Spectral:ON CF 9 2021

About the Canyon Spectral:ON CF 9 2021

The Canyon Spectral:ON CF 9 2021 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 22,5 kg.

Features

The Canyon Spectral:ON CF 9 2021 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Canyon Lock-On Grips
Components
Saddle
Canyon SD:ON, Perfect for long rides in a seated position or on steep climbs, extra padding around sit bones, additional rear support prevents you from sliding backwards on steep climbs, chromoly rails, durable nylon composite shell, 290 g
Battery
Shimano STEPS 630-Wh Battery, Shimano's highest-capacity Lithium-Ion battery, IPX5 water resistant, 3.7 Kg, adaptor for external charging not included
Seatpost
FOX Transfer Factory, FOX Transfer Factory dropper post provides 150 of seat heigh adjustability, Kashima coating for extra durability, 30.9mm diameter, 456mm length.
Discs
Shimano XTR front rotor, 203mm, Shimano's top-end rotor, ICE TECH FREEZA design reduces heat build-up and brake fade, center lock mounting for quick installation/removal | Shimano XTR STEPS rear rotor, 203mm, Specifically designed to work with E-MTB speed sensors. ICE TECH FREEZA design reduces heat build-up and brake fade, center-lock mounting for quick installation/removal
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano STEPS HOLLOWTECH E-MTB crank arms, Designed for the rigors of E-MTB riding and featuring Shimano's Hollowtech crank arm design, 24mm spindle, 165mm crank arms
Motor
Shimano EP8
Shifter
Shimano XTR, 12-speed, Rear derailleur shifter, 12-speed, Textured rubber lever pad, Multi-Release, 2-way release, I-Spec EV clamp allows 14mm lateral adjustment and 60-degrees rotation adjustment, 127 g
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Canyon Spectral:ON, Carbon front triangle, aluminium rear end, 150mm of rear suspension, award-winning Triple Phase Suspension design, internal battery, Boost 148 rear spacing, post-style brake mount (203mm)
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Float Factory Kashima
Wheels
Rims
Reynolds TR 309 E, 29er, Front wheel made for the demands of E-MTBs. Features Reynolds Tre front hub, Boost 110 spacing, 32 Sapim E-Lite spokes, carbon TR rims, 30mm inner width | Reynolds TR 367 E, 27.5", Rear wheel made for the demands of E-MTBs. Features Reynolds Tre rear hub, Boost 148 spacing, 36 Sapim E-Lite spokes, carbon TR rims, 30mm inner width
Tires
Maxxis Minion DHF, 2.5", EXO casing, Tubeless Ready design | Maxxis Minion DHR II, 2.6", EXO+ casing, Tubeless Ready design, 3C MaxxTerra tread compound

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
440,0
480,0
520,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
586,0
608,0
628,0
649,0
d
Head tube length
100,0
115,0
125,0
135,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
52,0
56,0
55,0
55,0
g
Trail
98,0
94,0
95,0
95,0
h
Wheelbase
1167,0
1193,0
1217,0
1241,0
i
Chainstay length
431,0
431,0
431,0
431,0
j
Bottom bracket drop
33,0
33,0
33,0
33,0
k
Stack height
616,0
621,0
631,0
641,0
l
Reach
421,0
441,0
461,0
481,0
m
Standover height
780,0
784,0
788,0
802,0
x
Bottom bracket height
322,0
322,0
322,0
322,0
y
Front center
738,0
764,0
788,0
812,0
