Canyon Spectral:ON WMN CF 7.0 2020

E-Bike
Women's Bike
MTB Enduro
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
22,02 kg
Front travel
150mm
Rear travel
150mm

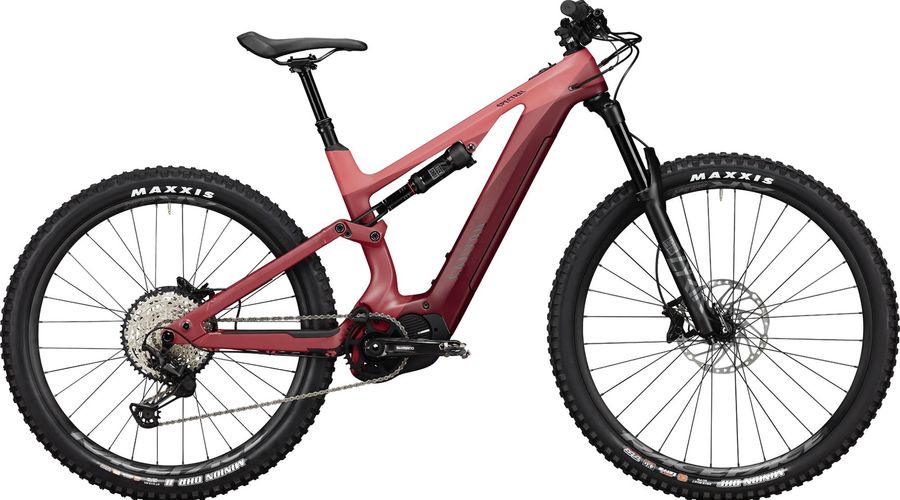

Canyon Spectral:ON WMN CF 7.0 2020

About the Canyon Spectral:ON WMN CF 7.0 2020

The Canyon Spectral:ON WMN CF 7.0 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 148, and hydraulic disc brakes. The bike weighs approximately 22,02 kg.

Features

The Canyon Spectral:ON WMN CF 7.0 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Lock-On
Components
Steam
Canyon:ON ST0030
Saddle
Canyon SD:ON
Battery
Shimano Steps E8035 504 Wh, Capacity: 504Wh/14 Ah, IPX5 water-resistant, Voltage: 36 V, Technology: Li-Ion, Weight: 2.9 kg
Seatpost
Iridium Dropper
Handlebar
Canyon:ON HB0056 Riserbar
Discs
Shimano RT64, Disc Mount: Centerlock
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Shimano E8000
Motor
Shimano Steps E8000, Max. power output: 250 W, Torque: 70 Nm, Weight: 2.8 kg
Shifter
Shimano SLX M7100 12s
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
Canyon Spectral:On, Material: Carbon, Travel: 150 mm, Axle Dimension: 12 x 148 mm, Brake Mount: Post Mount 203
Front suspension
RockShox Lyrik Select+ DebonAir 2003 g
Color
Diffusion Black, Gloss Black
Damper type
Charger 2.1 RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SELP-C2
Name
Lyrik Select+
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
2003
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
RaceFace AR35 | Shimano MT510 SH12
Tires
MAXXIS Minion DHR II 2,6", Casing: Exo+

Geometry

Size SM MD
a
Seat tube length
430,0
440,0
b
Seat tube angle
74,5º
74,5º
c
Top tube length
586,0
608,0
d
Head tube length
100,0
115,0
e
Head tube angle
66,5º
66,5º
f
Rake
52,0
56,0
g
Trail
98,0
94,0
h
Wheelbase
1167,0
1193,0
i
Chainstay length
431,0
431,0
j
Bottom bracket drop
33,0
33,0
k
Stack height
616,0
621,0
l
Reach
421,0
441,0
m
Standover height
780,0
784,0
x
Bottom bracket height
322,0
322,0
y
Front center
738,0
764,0
