BikeWise

Canyon STCHD 360 2021

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
12,2 kg
Front travel
100mm

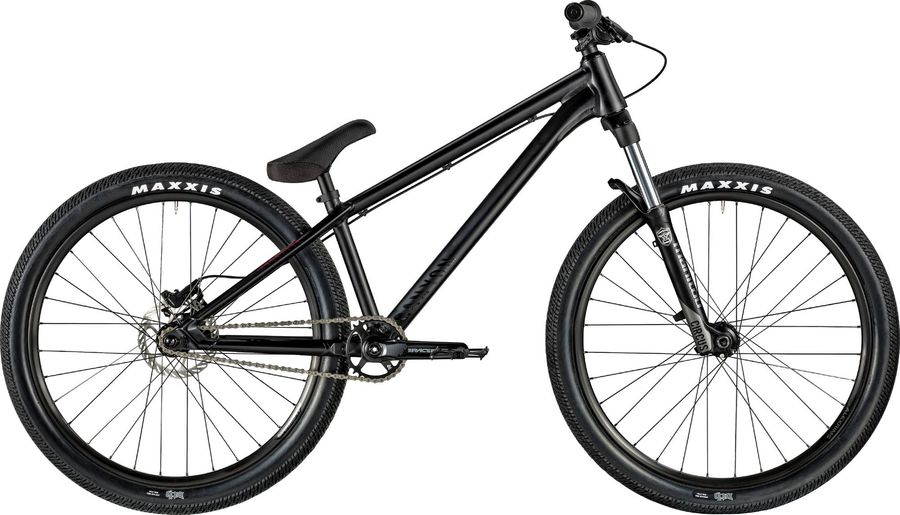

Canyon STCHD 360 2021

About the Canyon STCHD 360 2021

The Canyon STCHD 360 2021 is a Hardtail Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 12,2 kg.

Features

The Canyon STCHD 360 2021 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
None included
Components
Steam
Race Face Chester
Saddle
Canyon STCHD
Seatpost
Canyon STCHD
Handlebar
Race Face Chester Riserbar, Material: Aluminium, Rise: 35 mm
Discs
Avid G2, Disc Mount: 6-Hole
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Race Face Aeffect 30T
Bottom bracket
Race Face BSA Cinch
Chain
KMC Z51
Frameset
Frame
Canyon STCHD
Front suspension
Manitou Circus Sport
Wheels
Rims
Alexrims FR30 | STCHD Hubs
Tires
MAXXIS DTH 2.3"

Geometry

Size SM LG
a
Seat tube length
310,0
310,0
b
Seat tube angle
71,7º
71,7º
c
Top tube length
578,0
595,0
d
Head tube length
110,0
110,0
e
Head tube angle
68,5º
68,5º
f
Rake
42,0
42,0
g
Trail
90,0
90,0
h
Wheelbase
1033,0
1050,0
i
Chainstay length
378,0
378,0
j
Bottom bracket drop
20,0
20,0
k
Stack height
550,0
550,0
l
Reach
395,0
412,0
m
Standover height
-
-
x
Bottom bracket height
323,0
323,0
y
Front center
656,0
673,0
