Canyon STCHD 360 2022

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
12,2 kg
Front travel
100mm

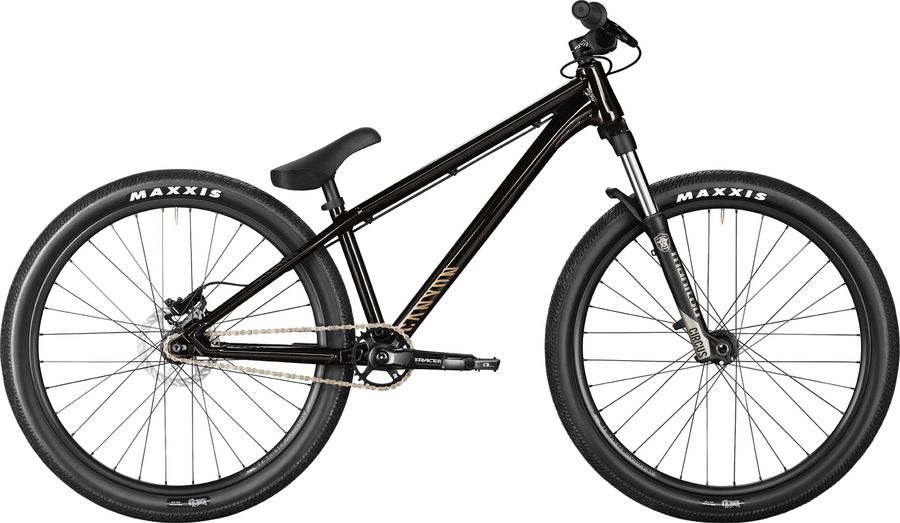

Canyon STCHD 360 2022

About the Canyon STCHD 360 2022

The Canyon STCHD 360 2022 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 12,2 kg.

Features

The Canyon STCHD 360 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Stitched
Pedals
None included
Components
Steam
Race Face Chester
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Handlebar
Race Face Chester Riserbar
Discs
SRAM G2 Centerline
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Drivetrain
Crankset
Race Face Aeffect 30T
Bottom bracket
Race Face BSA Cinch
Chain
KMC Z51
Frameset
Frame
Stitched 360
Front suspension
Manitou Circus Sport
Wheels
Rims
Alexrims FR30 | Stitched Hub
Tires
MAXXIS DTH 2.3"

Geometry

Size SM LG
a
Seat tube length
310,0
310,0
b
Seat tube angle
71,7º
71,7º
c
Top tube length
578,0
595,0
d
Head tube length
110,0
110,0
e
Head tube angle
68,5º
68,5º
f
Rake
43,0
43,0
g
Trail
89,0
89,0
h
Wheelbase
1033,0
1050,0
i
Chainstay length
377,0
377,0
j
Bottom bracket drop
20,0
20,0
k
Stack height
550,0
550,0
l
Reach
395,0
412,0
m
Standover height
-
-
x
Bottom bracket height
323,0
323,0
y
Front center
657,0
674,0
