Canyon Stitched 360 2021
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
12,2 kg
Front travel
100mm

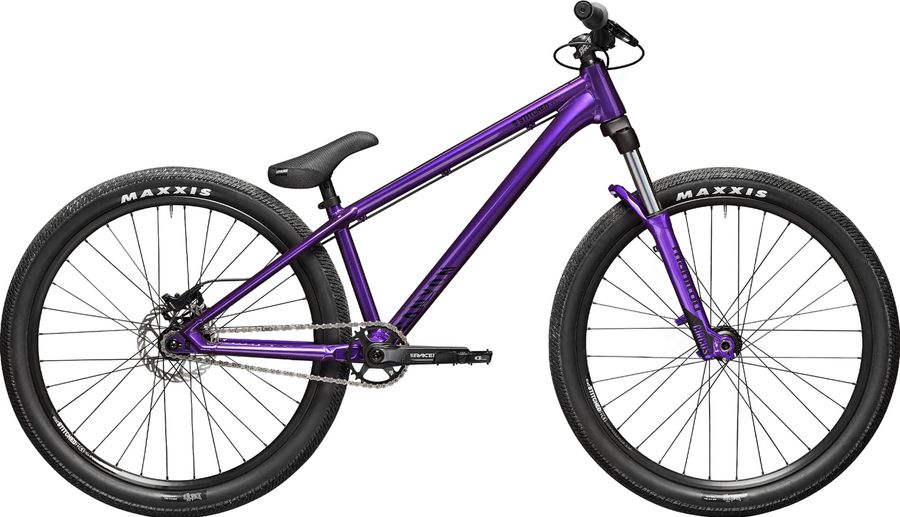

About the Canyon Stitched 360 2021
The Canyon Stitched 360 2021 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 12,2 kg.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Canyon Stitched
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
Race Face Chester
|
|---|---|
|
Saddle
|
Canyon Stitched
|
|
Seatpost
|
Canyon Stitched
|
|
Handlebar
|
Race Face Chester Riserbar, Material: Aluminium, Rise: 35 mm
|
|
Discs
|
Avid G2, Disc Mount: 6-Hole
|
|
Brakes
|
SRAM Level T
Hydraulic
410 g
|
|
|
|
|
Crankset
|
Race Face Aeffect 30T
|
|---|---|
|
Bottom bracket
|
Race Face BSA Cinch
|
|
Chain
|
KMC Z51
|
|
Frame
|
Canyon Stitched
|
|---|---|
|
Front suspension
|
Manitou Circus Sport
|
|
Rims
|
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
|
|---|---|
|
Tires
|
MAXXIS DTH 2.3"
|
Geometry
| Size | SM | LG |
|---|---|---|
|
a
Seat tube length
|
310,0
|
310,0
|
|
b
Seat tube angle
|
71,7º
|
71,7º
|
|
c
Top tube length
|
578,0
|
595,0
|
|
d
Head tube length
|
110,0
|
110,0
|
|
e
Head tube angle
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
|
g
Trail
|
90,0
|
90,0
|
|
h
Wheelbase
|
1033,0
|
1050,0
|
|
i
Chainstay length
|
378,0
|
378,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
|
k
Stack height
|
550,0
|
550,0
|
|
l
Reach
|
395,0
|
412,0
|
|
m
Standover height
|
-
|
-
|
|
x
Bottom bracket height
|
323,0
|
323,0
|
|
y
Front center
|
656,0
|
673,0
|
