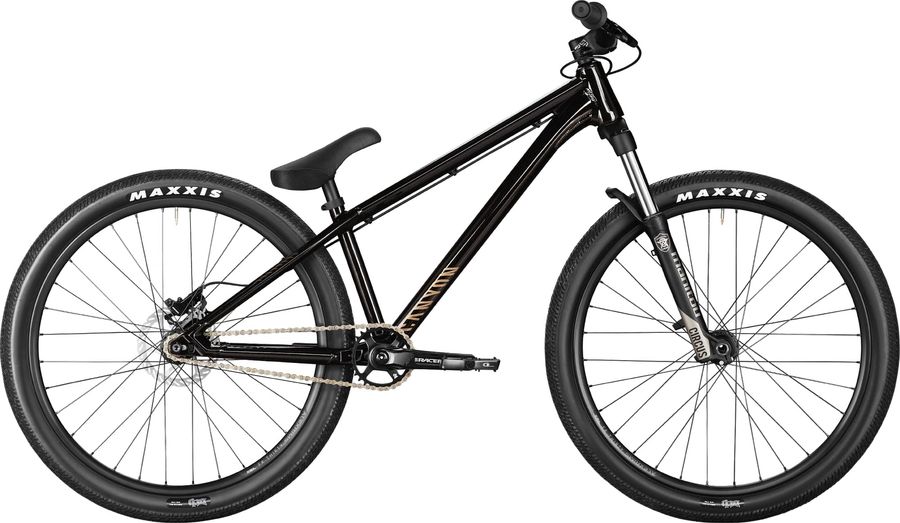

Canyon Stitched 360 2022

Frame material

Alloy

Wheel size

26"

Suspension type

Hardtail

Weight

12,2 kg

Front travel

100mm

About the Canyon Stitched 360 2022

The Canyon Stitched 360 2022 is a Hardtail Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 12,2 kg.

Features

The Canyon Stitched 360 2022 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Canyon Stitched, Canyon Stitched grips for direct handling and extra shock absorption.
Pedals	None included

Components
Steam	Race Face Chester
Saddle	Canyon Stitched
Seatpost	Canyon Stitched, Canyon aluminium seatpost. Dimensions: 27.2 x 260 mm., Clamp diameter: 27,2 mm
Handlebar	Race Face Chester Riserbar, Aluminium handlebar., Rise: 35 mm., Clamp diameter: 35 mm., Width: 780 mm
Discs	SRAM G2 Centerline, Brake rotor with 6-bolt hub interface. Diameter: 160 mm.
Brakes	SRAM Level T Hydraulic 410 g
Application MTB Blade material Aluminum - Stamped Bracket disk brake Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Gloss Black Model DB-LVL-T-A1 Name Level T Orientation Front, L/F, L/R, R/F, R/R, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 410

Drivetrain
Crankset	Race Face Aeffect 30T, Direct-mount aluminium chainring. Size: 30T., Number of chainrings: 1
Bottom bracket	Race Face BSA Cinch, Race Face aluminium BSA bottom bracket with thicker walls for top durability. Housing dimensions: 68/73 mm.
Chain	KMC Z51

Frameset
Frame	Stitched 360, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness and dropout-integrated chain tensioner., Material: Aluminium (AL)
Front suspension	Manitou Circus Sport

Wheels
Rims	Alexrims FR30 \| Stitched Hub, Robust 26-inch Canyon aluminium front wheel. With industrial bearings for enhanced durability. Axle dimensions: 20 x 110 mm., Rotor Mount: IS 6-bolt \| Alexrims FR30 \| Stitched Hub, Robust 26-inch Canyon aluminium rear wheel. With industrial bearings for enhanced durability. Axle dimensions: 9 x 135 mm., Rotor Mount: IS 6-bolt
Tires	MAXXIS DTH 2.3", Latest-generation dirt and street tyres. 26-inch. Low weight, huge grip. Width: 2.3-inch., Wheelsize: 26"

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Report incorrect information

Geometry

Size	SM	LG
a Seat tube length	310,0	310,0
b Seat tube angle	71,7º	71,7º
c Top tube length	578,0	595,0
d Head tube length	110,0	110,0
e Head tube angle	68,5º	68,5º
f Rake	43,0	43,0
g Trail	89,0	89,0
h Wheelbase	1033,0	1050,0
i Chainstay length	377,0	377,0
j Bottom bracket drop	20,0	20,0
k Stack height	550,0	550,0
l Reach	395,0	412,0
m Standover height	-	-
x Bottom bracket height	323,0	323,0
y Front center	657,0	674,0
