Canyon Stitched 360 Pro 2019

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
100mm
Canyon Stitched 360 Pro 2019

About the Canyon Stitched 360 Pro 2019

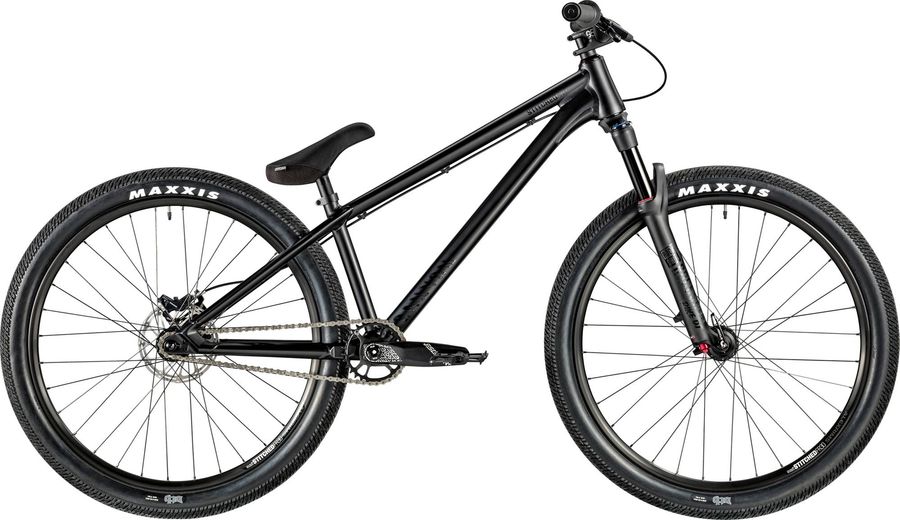

The Canyon Stitched 360 Pro 2019 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes.

Features

The Canyon Stitched 360 Pro 2019 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Stitched
Pedals
None included
Components
Steam
Canyon G5
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Discs
SRAM Centerline Rounded Edges, Disc Mount: 6-Hole
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K DUB 30T 30
Bottom bracket
SRAM BSA DUB
Chain
KMC Z51
Frameset
Frame
Canyon Stitched, Material: Aluminium 6061, Axle Dimension: 9 x 135 mm, Brake Mount: IS-Mount
Front suspension
RockShox Pike DJ Solo Air 1839 g
Color
Diffusion Black, Gloss Black
fork offset
40mm (26")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-PIKE-DJ-A3
Name
Pike DJ
Spring
Solo Air
Travel (mm)
100mm, 140mm
Upper tube type
35mm tapered wall aluminum
Weight based on
140mm, Maxle Ultimate
Weight
1839
Wheel size
26"
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"

Geometry

Size SM LG
a
Seat tube length
310,0
310,0
b
Seat tube angle
71,7º
71,7º
c
Top tube length
578,0
595,0
d
Head tube length
110,0
110,0
e
Head tube angle
68,5º
68,5º
f
Rake
43,0
43,0
g
Trail
89,0
89,0
h
Wheelbase
1033,0
1050,0
i
Chainstay length
377,0
377,0
j
Bottom bracket drop
20,0
20,0
k
Stack height
550,0
550,0
l
Reach
395,0
412,0
m
Standover height
-
-
x
Bottom bracket height
323,0
323,0
y
Front center
657,0
674,0
