Canyon Stitched 360 Pro 2021

Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Weight
11,5 kg
Front travel
100mm

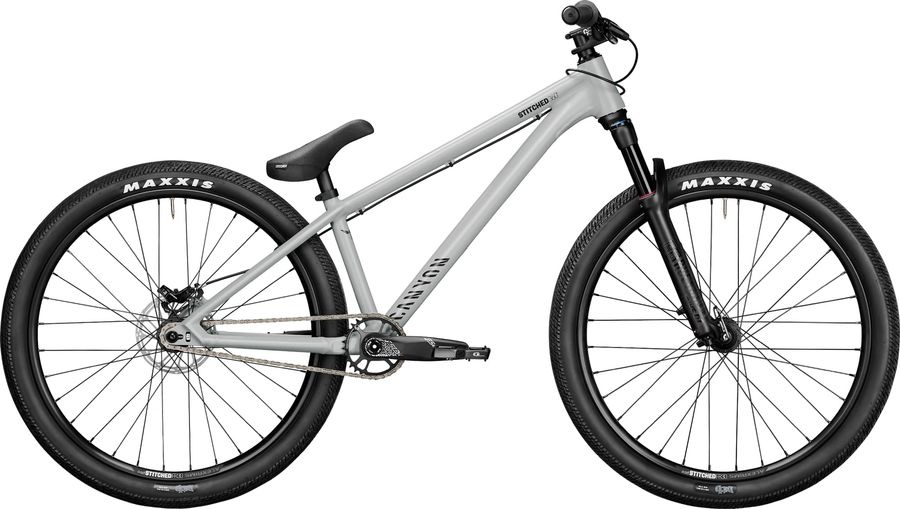

Canyon Stitched 360 Pro 2021

About the Canyon Stitched 360 Pro 2021

The Canyon Stitched 360 Pro 2021 is a Hardtail Mountain Bike with a alloy frame. Its features include hydraulic disc brakes. The bike weighs approximately 11,5 kg.

Features

The Canyon Stitched 360 Pro 2021 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Canyon Stitched
Pedals
None included
Components
Steam
Canyon G5, The Canyon G5 stem (40mm extension) is both incredibly strong and beautifully designed.
Saddle
Canyon Stitched
Seatpost
Canyon Stitched
Handlebar
Canyon H42 Rise, Material: Aluminium, Rise : 38 mm
Discs
Avid G2, Disc Mount: 6-Hole
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
Truvativ Descendant 6K DUB 30T
Bottom bracket
SRAM BSA DUB, Hassle-free SRAM DUB threaded bottom bracket.
Chain
KMC Z51
Frameset
Frame
Canyon Stitched
Front suspension
RockShox Pike DJ Solo Air 1839 g
Color
Diffusion Black, Gloss Black
fork offset
40mm (26")
Max tire width (mm)
66
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-PIKE-DJ-A3
Name
Pike DJ
Spring
Solo Air
Travel (mm)
100mm, 140mm
Upper tube type
35mm tapered wall aluminum
Weight based on
140mm, Maxle Ultimate
Weight
1839
Wheel size
26"
Wheels
Rims
Alexrims FR30 | Stitched Hubs, Rim Material: Aluminium, Inner Width: 23 mm
Tires
MAXXIS DTH 2.3"

Geometry

Size SM LG
a
Seat tube length
310,0
310,0
b
Seat tube angle
71,7º
71,7º
c
Top tube length
578,0
595,0
d
Head tube length
110,0
110,0
e
Head tube angle
68,5º
68,5º
f
Rake
42,0
42,0
g
Trail
90,0
90,0
h
Wheelbase
1033,0
1050,0
i
Chainstay length
378,0
378,0
j
Bottom bracket drop
20,0
20,0
k
Stack height
550,0
550,0
l
Reach
395,0
412,0
m
Standover height
-
-
x
Bottom bracket height
323,0
323,0
y
Front center
656,0
673,0
