Canyon Stitched 720 2022

Frame material

Alloy

Wheel size

26"

Suspension type

Full suspension

Weight

12,7 kg

Front travel

100mm

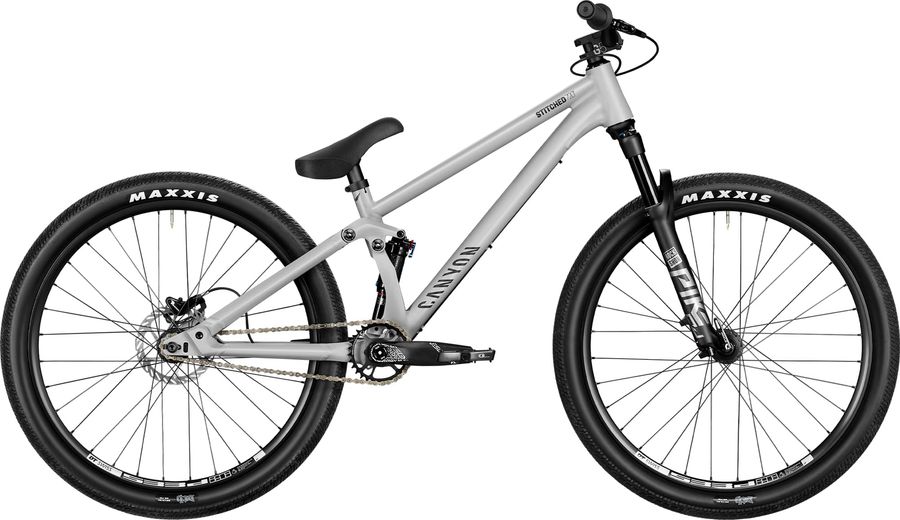

About the Canyon Stitched 720 2022

The Canyon Stitched 720 2022 is a Full suspension Mountain Bike with a alloy frame. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 12,7 kg.

Features

The Canyon Stitched 720 2022 has 2 features listed below.

Boost 110 More info

Hydraulic disc brakes More info

Specifications

Acessories
Grip	Canyon Stitched, Canyon Stitched grips for direct handling and extra shock absorption.
Pedals	None included

Components
Steam	Canyon G5 Stem, Modern design, extreme durability: Canyon G5 components were developed by our pros on the world's toughest trails. Material: aluminium. Length: 40 mm. Clamping diameter: 31.8 mm.
Saddle	Canyon Stitched
Seatpost	Canyon Stitched, Clamp diameter: 30,9 mm
Handlebar	Canyon G5 Riser Bar, G5 stands for gravity riding, and category 5. This aluminium bar has superb ergonomics and durability. Width: 780 mm. Rise: 30 mm. Clamping diameter: 31.8 mm., Clamping Diameter: 31,8 mm, Width: 780 mm, Rise: 30 mm
Discs	SRAM G2 Centerline, Brake rotor with 6-bolt hub interface. Diameter: 160 mm.
Brakes	SRAM Level TL Hydraulic 370 g
Application MTB Blade material Aluminum - Forged Bracket disk brake Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P Brake type Hydraulic Color Diffusion Black Anodized, Gloss Black Model DB-LVL-TL-A1 Name Level TL Orientation Front, Rear Pad type disc Steel-backed metal sintered, Steel-backed organic Weight based on Direct Mount, 800mm hose, 160mm CL Rotor (TARGET) Weight 370

Drivetrain
Crankset	Truvativ Descendant 6K DUB 30T, Aluminium crankset., Chainring size: 30T., Arm length: 165 mm., Number of chainrings: 1
Bottom bracket	SRAM BSA DUB, SRAM BSA bottom bracket with DUB (Durable Unified Bottom Bracket) technology for optimal power transfer. With sealed cartridge bearings for dependable protection against dirt and moisture. Shell width: 68 / 73 mm.
Chain	KMC Z51

Frameset
Frame	Canyon Stitched, Lightweight but highly robust frame. Category: 5. With BB box design for maximum bottom bracket stiffness, and progressive rear suspension tune for more airtime and harder impacts., Material: Aluminium (AL)
Rear suspension	RockShox Monarch RT
Body eyelet No Bushing, Standard Compression tune H, L, L1, L3, M Eye to eye stroke 152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63 Lockout force 320, 380 Model RS-MNR-RT-D3 Name Monarch RT Rebound tune H, L, M Shaft eyelet No Bushing, Standard
Front suspension	RockShox Pike DJ Solo Air 1839 g
Color Diffusion Black, Gloss Black fork offset 40mm (26") Max tire width (mm) 66 Maximum rotor size 220mm Minimum rotor size 160mm Model FS-PIKE-DJ-A3 Name Pike DJ Spring Solo Air Travel (mm) 100mm, 140mm Upper tube type 35mm tapered wall aluminum Weight based on 140mm, Maxle Ultimate Weight 1839 Wheel size 26"

Wheels
Rims	DT Swiss 533D \| Stitched Hub, Robust 26-inch Canyon aluminium rear wheel. With industrial bearings for enhanced durability. Axle dimensions: 9 x 135 mm., Rotor Mount: IS 6-bolt \| DT Swiss 533D \| Stitched Hub, Robust 26-inch Canyon aluminium front wheel. With industrial bearings for enhanced durability. Axle dimensions: 15 x 110 mm., Rotor Mount: IS 6-bolt
Tires	MAXXIS DTH 2.3", Latest-generation dirt and street tyres. 26-inch. Low weight, huge grip. Width: 2.3-inch., Wheelsize: 26"

Follow your favorite drivers

Receive notifications when your favorite riders finish UCI races.

Report incorrect information

Geometry

Size	MD
a Seat tube length	326,0
b Seat tube angle	72,5º
c Top tube length	521,0
d Head tube length	118,0
e Head tube angle	69,0º
f Rake	46,0
g Trail	82,0
h Wheelbase	1075,0
i Chainstay length	391,0
j Bottom bracket drop	20,0
k Stack height	550,0
l Reach	424,0
m Standover height	-
x Bottom bracket height	323,0
y Front center	685,0
