Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Weight
14,76 kg
Front travel
140mm

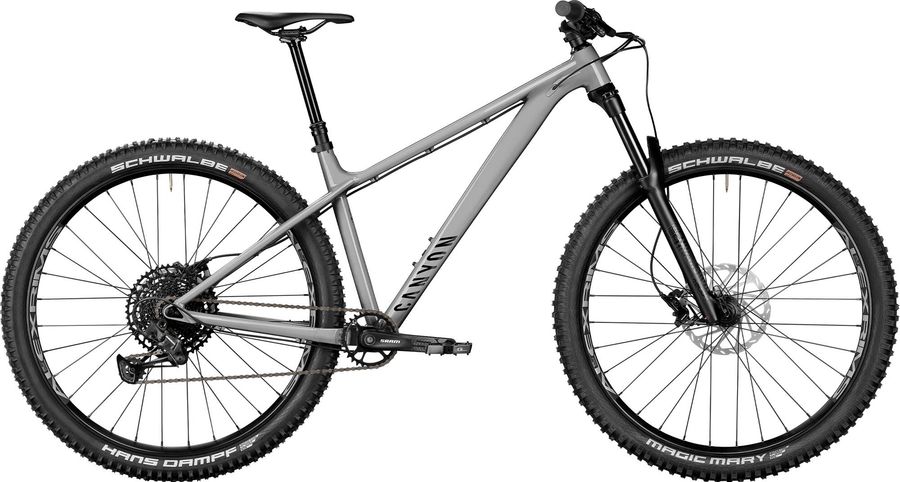

About the Canyon Stoic 3 2021
The Canyon Stoic 3 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost e hydraulic disc brakes. The bike weighs approximately 14,76 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Canyon G5 Grips, Canyon's G5 Lock-On grips are comfortable and secure.
|
|---|---|
|
Pedals
|
None included
|
|
Steam
|
ST IRID ONE V24-01 45 31.8 1 1/8 bk
|
|---|---|
|
Saddle
|
VELO VL-5120
|
|
Seatpost
|
Iridium Dropper, The Iridium dropper post offers 170mm of on-the-fly seat height adjustability.
|
|
Handlebar
|
JD MTB, The Stoic's cockpit is dialed for aggressive trail riding thanks to its combination of short stem and wide (780mm) riser bars.
|
|
Discs
|
SRAM G2 CleanSweep 180mm, 180mm SRAM Centerline rear rotor offers excellent braking control. | SRAM G2 CleanSweep 200mm, 200mm SRAM Centerline front rotor offers excellent braking control.
|
|
Brakes
|
SRAM Level T
Hydraulic
410 g
|
|
|
|
|
Crankset
|
SRAM SX EAGLE, SRAM's aluminum SX Eagle crank delivers outstanding reliability thanks to its long-wearing steel chainring and precisely-profiled teeth.
|
|---|---|
|
Shifter
|
SRAM SX Eagle Trigger 12s, SX Eagle's 12-speed shifters offer quick and crisp gear changes.
|
|
Bottom bracket
|
SRAM PowerSpline, SRAM's threaded PowerSpline bottom bracket makes servicing your bottom bracket quick and painless.
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
Canyon Stoic Aluminium Frame, Long, low, and slack geometry combine with a bomber, aluminum chassis to create a bike that begs to be thrown around, ridden hard, and put away wet.
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rims
|
Alex Rims DP30 / KT MS6F, Wide (30mm) and tough, alloy Alex rims get paired with KT premium hubs for seasons of hard riding. | Alex Rims DP30 / KT M5ER, Wide (30mm) and tough, alloy Alex rims get paired with KT premium hubs for seasons of hard riding.
|
|---|---|
|
Tires
|
Schwalbe Hans Dampf 2.35", The original all-rounder, the Hans Dampf rolls quick yet offers reliable traction in a wide range of conditions. | Schwalbe Magic Mary Evo Super Trail, Stoic is spearheaded by an all-time gravity favorite, the Magic Mary. The new Super Trail casing boosts puncture resistance yet keeps weight low.
|
Geometry
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
365,0
|
365,0
|
400,0
|
430,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
75,0º
|
|
c
Top tube length
|
538,0
|
563,0
|
590,0
|
622,0
|
649,0
|
677,0
|
|
d
Head tube length
|
90,0
|
90,0
|
100,0
|
90,0
|
100,0
|
110,0
|
|
e
Head tube angle
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
65,0º
|
|
f
Rake
|
48,0
|
48,0
|
48,0
|
46,0
|
45,0
|
46,0
|
|
g
Trail
|
113,0
|
113,0
|
113,0
|
124,0
|
125,0
|
124,0
|
|
h
Wheelbase
|
1103,0
|
1128,0
|
1157,0
|
1192,0
|
1221,0
|
1251,0
|
|
i
Chainstay length
|
417,0
|
417,0
|
417,0
|
427,0
|
427,0
|
427,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
591,0
|
591,0
|
600,0
|
625,0
|
634,0
|
643,0
|
|
l
Reach
|
379,0
|
404,0
|
429,0
|
454,0
|
479,0
|
504,0
|
|
m
Standover height
|
740,0
|
739,0
|
741,0
|
767,0
|
772,0
|
773,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
310,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
690,0
|
715,0
|
744,0
|
772,0
|
800,0
|
830,0
|
