Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Weight
14,2 kg
Rear travel
163mm

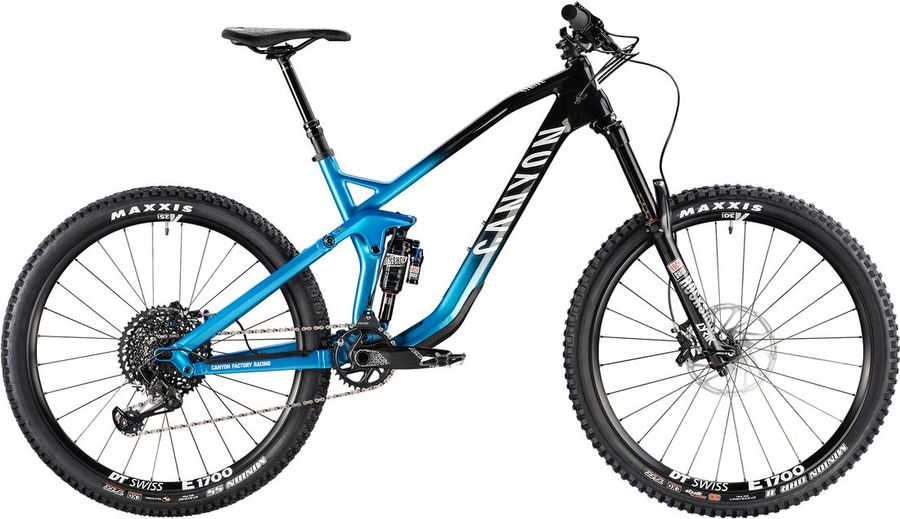

About the Canyon Strive CF 7.0 2018
The Canyon Strive CF 7.0 2018 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include internal routing, dropper seatpost, and hydraulic disc brakes. The bike weighs approximately 14,2 kg.
Features
Internal routing
More info
Internal routing
Dropper seatpost
More info
Dropper seatpost
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Grip
|
Canyon G5
|
|---|---|
|
Pedals
|
none included
|
|
Steam
|
Race Face Aeffect, Angle: + / - 6°, 1 1/8" clamp, Stack: 39mm, Bar clamp diameter: 35mm, Light 6061 aluminium
|
|---|---|
|
Saddle
|
SDG FLY MTN
|
|
Headset
|
Canyon | Acros
|
|
Seatpost
|
RockShox Reverb Stealth B1, Dropper post with infinite height adjustment, Internally routed hose for clean look, 150 mm of adjustment, Framesize XS and S: 125 mm of adjustment, Diameter: 30.9 mm
|
|
Handlebar
|
Race Face Aeffect, Width: 780 mm, Diameter at clamping area: 35 mm
|
|
Brakes
|
SRAM Guide R
Hydraulic
392 g
|
|
|
|
|
Crankset
|
Truvativ DESCENDANT EAGLE
|
|---|---|
|
Shifter
|
SRAM GX Eagle Trigger, 12s
|
|
Chain guide
|
MRP V3 S3
|
|
Bottom bracket
|
SRAM GXP
|
|
Chain
|
SRAM GX Eagle
244 g
|
|
|
|
|
Cassette
|
SRAM XG-1275 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Frame
|
Canyon Strive CF, Geometry, suspension travel and response adjustment with Shapeshifter, 2400 g carbon frame (incl. Shapeshifter), Tapered Head Tube, Internal routing for gear cables, brakes and dropper post., Down Tube Protector, 180mm Direct Post Mount Brakes, 160/135 mm Travel, Video Manual: Canyon Shapeshifter System
|
|---|---|
|
Front suspension
|
RockShox Lyrik RCT3
Dual Position Air, Solo Air
2005 g
|
|
|
|
|
Rear suspension
|
RockShox Monarch Plus RC3
|
|
|
|
|
Rims
|
DT Swiss EX 1700 Spline, 30 | 25 mm
|
|---|---|
|
Tires
|
Maxxis Minion DHR II 2.4 | Maxxis Minion Semi Slick 2.3, FW: TR | EXO | 3C MaxxGrip, Tubeless Ready, , RW: Dual | TR | EXO | Silkworm | 60 TPI, Tubeless Ready
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
388,0
|
430,0
|
430,0
|
460,0
|
500,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
581,0
|
605,0
|
634,0
|
653,0
|
663,0
|
|
d
Head tube length
|
95,0
|
115,0
|
125,0
|
135,0
|
155,0
|
|
e
Head tube angle
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
66,0º
|
|
f
Rake
|
334,0
|
334,0
|
334,0
|
328,0
|
335,0
|
|
g
Trail
|
-207,0
|
-207,0
|
-207,0
|
-201,0
|
-208,0
|
|
h
Wheelbase
|
1137,0
|
1163,0
|
1193,0
|
1212,0
|
1245,0
|
|
i
Chainstay length
|
428,0
|
428,0
|
428,0
|
428,0
|
428,0
|
|
j
Bottom bracket drop
|
-
|
-
|
-
|
-
|
-
|
|
k
Stack height
|
597,0
|
611,0
|
620,0
|
632,0
|
648,0
|
|
l
Reach
|
407,0
|
427,0
|
453,0
|
473,0
|
492,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
944,0
|
968,0
|
996,0
|
1014,0
|
1045,0
|
